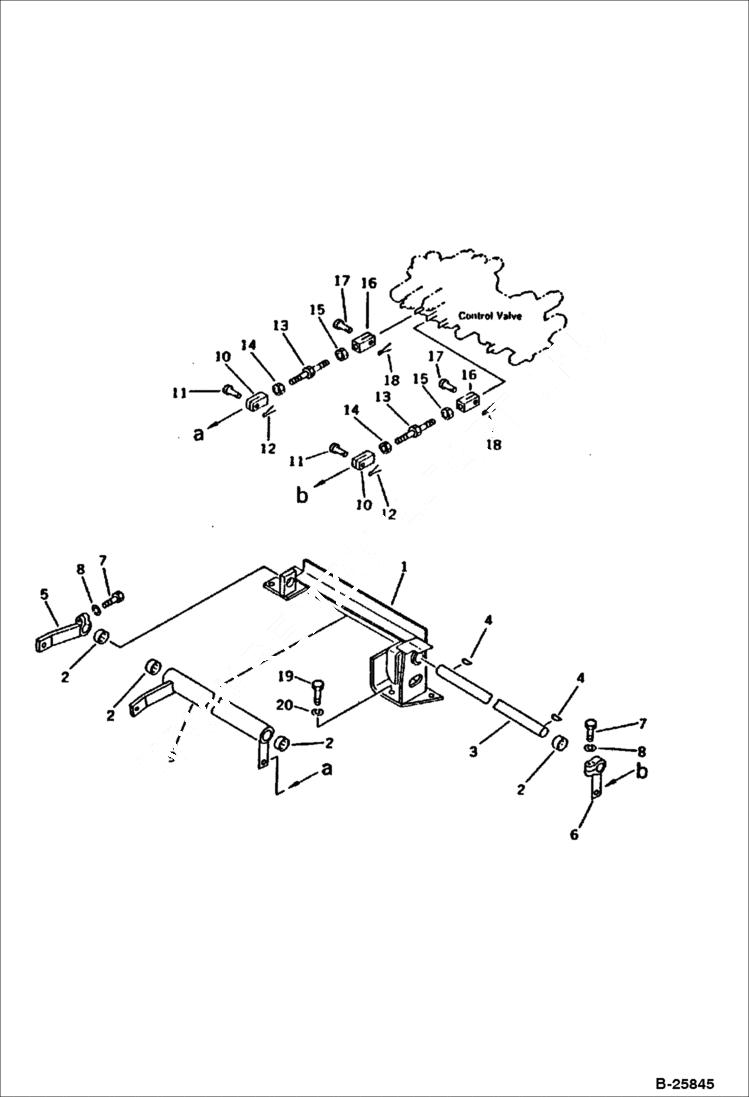

Запчасти Bobcat 116 BOOM, BUCKET CONTROL LEVER (FOR I.S.O. PATTERN)(EXCEPT JAPAN) CONTROL SYSTEM AND REVOLVING FRAME

1

BRACKET, R.H. Was 20S-43-33310

2

6637894

BEARING

3

SHAFT Was 20S-43-31330

4

6637173

KEY

5

6642907

LEVER

6

LEVER Was 20S-43-31360

7

6636960

BOLT

8

6637134

WASHER

9

LEVER Was 20S-43-31341

10

6638691

YOKE

11

6637255

PIN

12

6637196

PIN, COTT

13

6645551

ROD

14

NUT Was 01508-41006

15

6637113

NUT

16

6638709

YOKE

17

6637248

PIN

18

6637193

PIN

19

6636968

BOLT

20

6637157

WASHER
