BOOM SWING, ARM, SWING CONTROL LINKAGE (FOR I.S.O. PATTERN)(EXCEPT JAPAN)

Запчасти Bobcat 116 BOOM SWING, ARM, SWING CONTROL LINKAGE (FOR I.S.O. PATTERN)(EXCEPT JAPAN) CONTROL SYSTEM AND REVOLVING FRAME

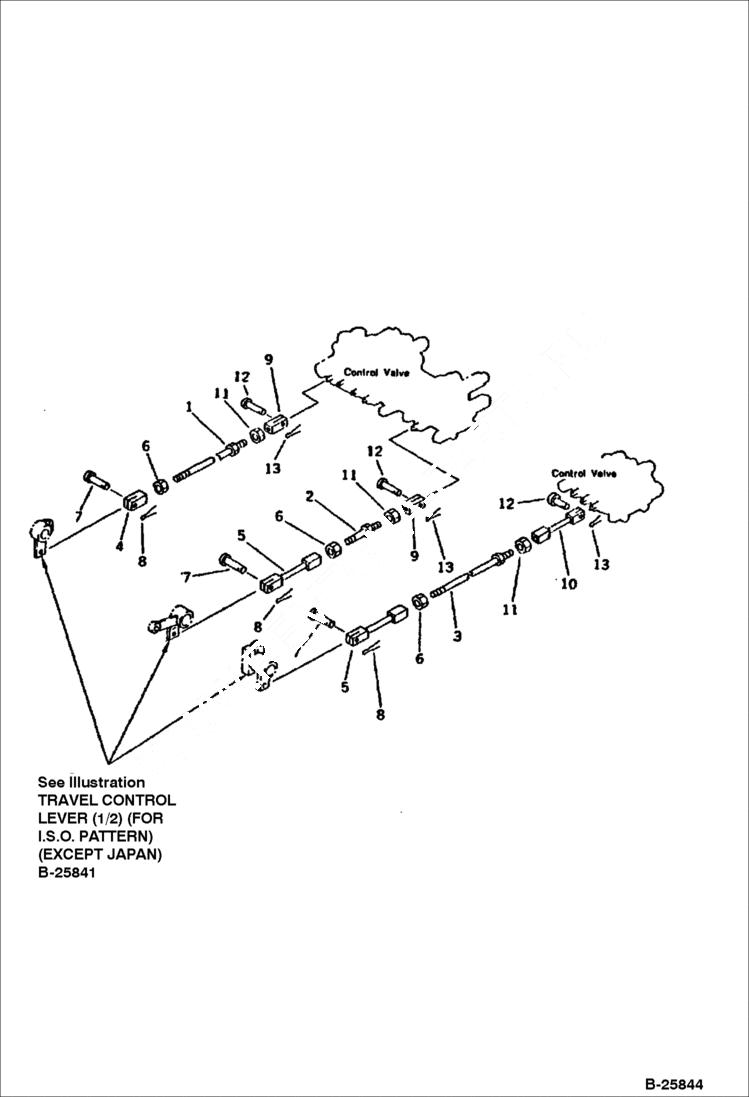

Схема запчастей Bobcat 116 - BOOM SWING, ARM, SWING CONTROL LINKAGE (FOR I.S.O. PATTERN)(EXCEPT JAPAN) CONTROL SYSTEM AND REVOLVING FRAME
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6646863

ROD

2

ROD Was 20S-43-25270

3

6637300

ROD

4

6638691

YOKE L.H. thread

5

6642918

ROD

6

NUT, L.H. THREAD Was 01508-41006

7

6637255

PIN

8

6637196

PIN, COTT

9

6638709

YOKE

10

6638710

ROD

11

6637113

NUT

12

6637248

PIN

13

6637193

PIN
