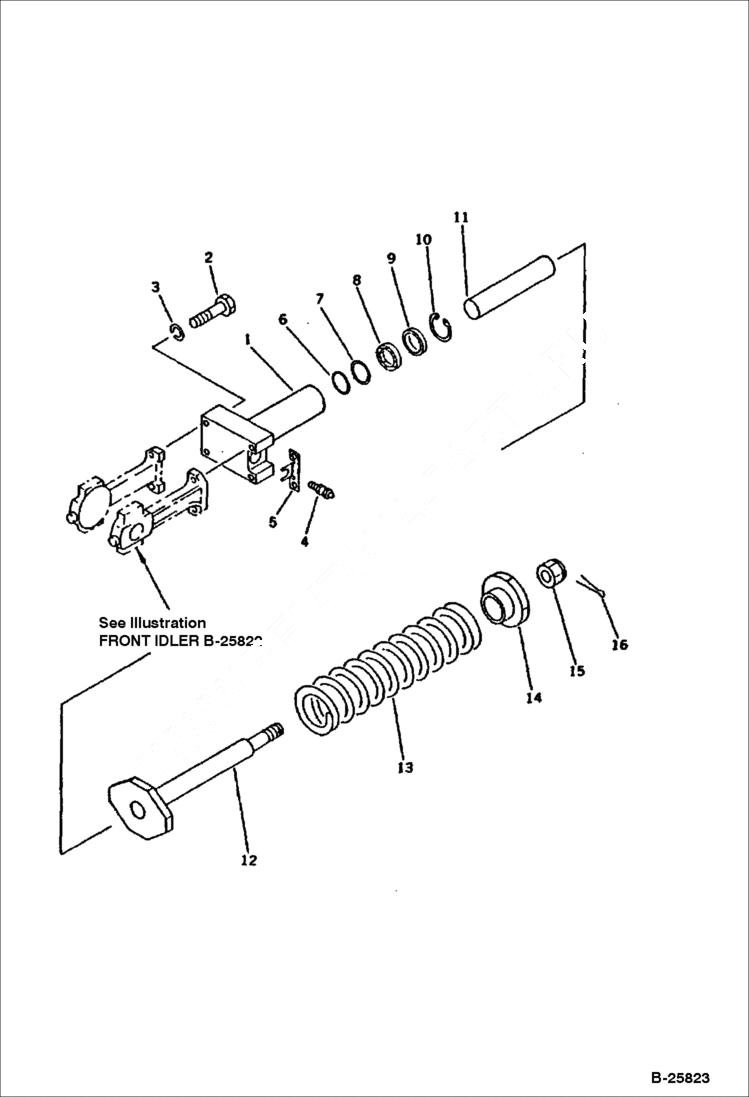

Запчасти Bobcat 116 RECOIL SPRING UNDERCARRIAGE

1

6666301

CYLINDER

2

6636986

BOLT

3

6637136

WASHER

4

LUBRICATOR Was 07959-20000

5

6659486

PLATE

6

6637387

O-RING

7

6638564

RING

8

6637429

SEAL, DUST

9

6639036

SHIM

10

6637232

RING, SNAP

11

ROD Komatsu S/N 12141 & Abv. - Was 20T-30-41520

11

6638562

ROD Komatsu S/N 10001-12140

12

6639427

ROD

13

6639424

SPRING

14

6639428

BRACKET Komatsu S/N 12141 & Abv

14

BRACKET Komatsu S/N 10001-12140 - Was 20T-30-31420

15

6637119

NUT

16

6637208

PIN, COTT
