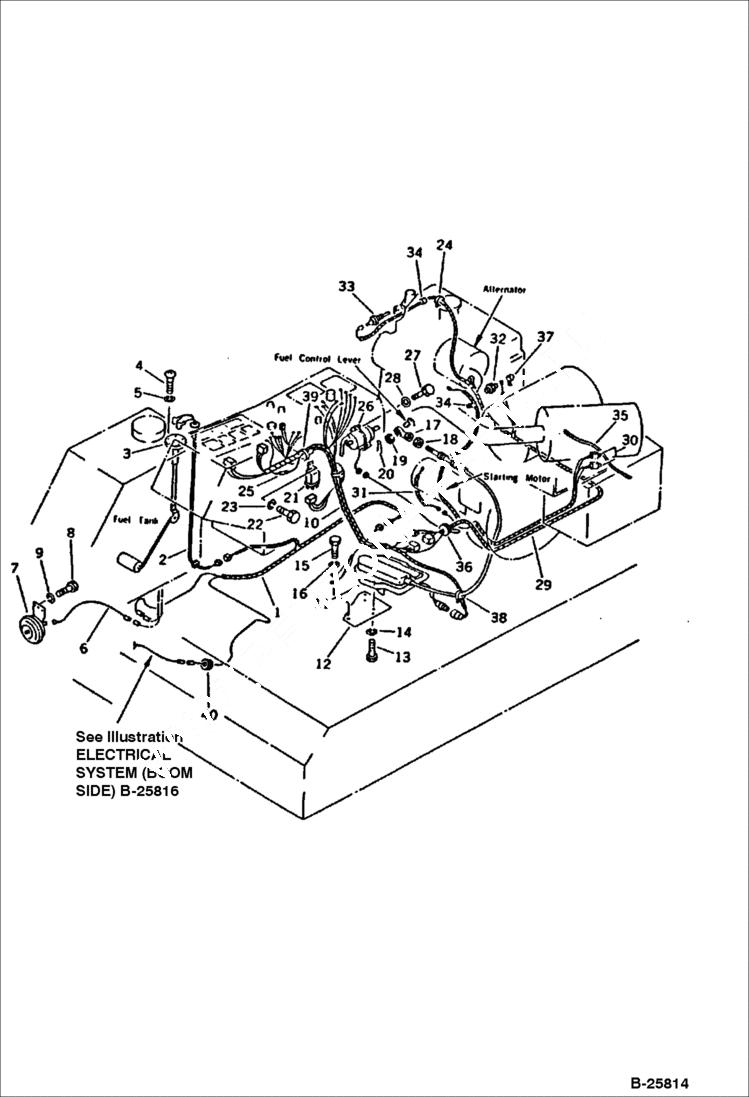

Запчасти Bobcat 116 ELECTRICAL SYSTEM Komatsu S/N 11900 & Abv. ENGINE RELATED PARTS AND ELECTRICAL SYSTEM

1

WIRE ASSY Komatsu S/N 11900 & Abv - Was 20S-06-31440

2

6638999

WIRE

3

6638992

FLOAT

4

6637025

SCREW

5

6637132

WASHER

6

WIRE Komatsu S/N 11900 & Abv - Was 20S-06-31450

7

6637726

HORN

8

6636957

BOLT

9

6637134

WASHER

10

WIRE ASSY Komatsu S/N 11900 & Abv - Was 20T-06-41122

10

6639890

DIODE

11

6657697

MOTOR

12

PLATE Was 20T-06-41420

13

6636957

BOLT

14

6637134

WASHER

15

6646857

BOLT

16

6637135

WASHER

17

END, ROD Was 04250-40639

18

NUT Was 01580-00605

19

NUT Was 01590-10607

20

6646717

COTER PIN

21

6665848

RELAY

22

6636952

BOLT

23

6637133

WASHER

24

6637682

BAND

25

FUSE, 5A Was 08040-00500

26

6660730

PUMP ASSY Was 20T-06-41310

27

6636953

BOLT

28

6637155

WASHER

29

WIRE ASSY Komatsu S/N 11900 & Abv - Was 20T-06-41132

30

LINK, FUSEABLE Komatsu S/N 11900 & Abv - Was 203-06-57241

31

WIRE ASSY Komatsu S/N 11900 & Abv - Was 20T-06-41180

32

6637719

SWITCH

33

6637895

SENSOR unit

34

CLIP Was 22X-07-12270

35

6638545

WIRE

36

6637706

GROMMET

37

6637708

CAP

38

6637682

BAND

39

6637681

BAND

40

6637700

GROMMET
