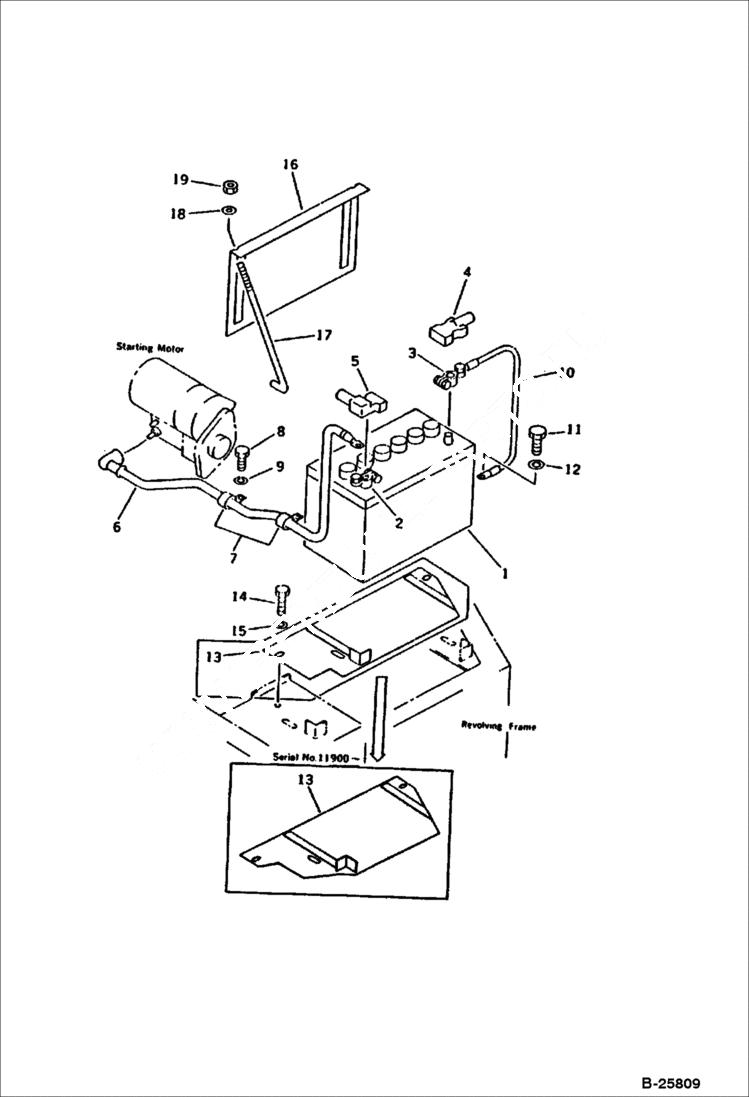

Запчасти Bobcat 116 BATTERY ENGINE RELATED PARTS AND ELECTRICAL SYSTEM

1

6642899

BATTERY 12V 70AH

2

6640837

TERMINAL (+)

3

6640838

TERMINAL (-)

4

6637711

CAP

5

6638628

COVER

6

WIRE ASSY Komatsu S/N 11900 & Abv - Was 20T-06-41191

6

WIRE ASSY Komatsu S/N 10001-11899 - Was 20T-06-41190

7

6637690

CLIP

8

6636965

BOLT

9

6637135

WASHER

10

6638545

WIRE

11

6636965

BOLT

12

6637157

WASHER

13

BRACKET Was 20T-06-41610

14

6636957

BOLT

15

6637134

WASHER

16

6639001

RETAINER

17

6654230

ROD

18

6637146

WASHER

19

6637107

NUT
