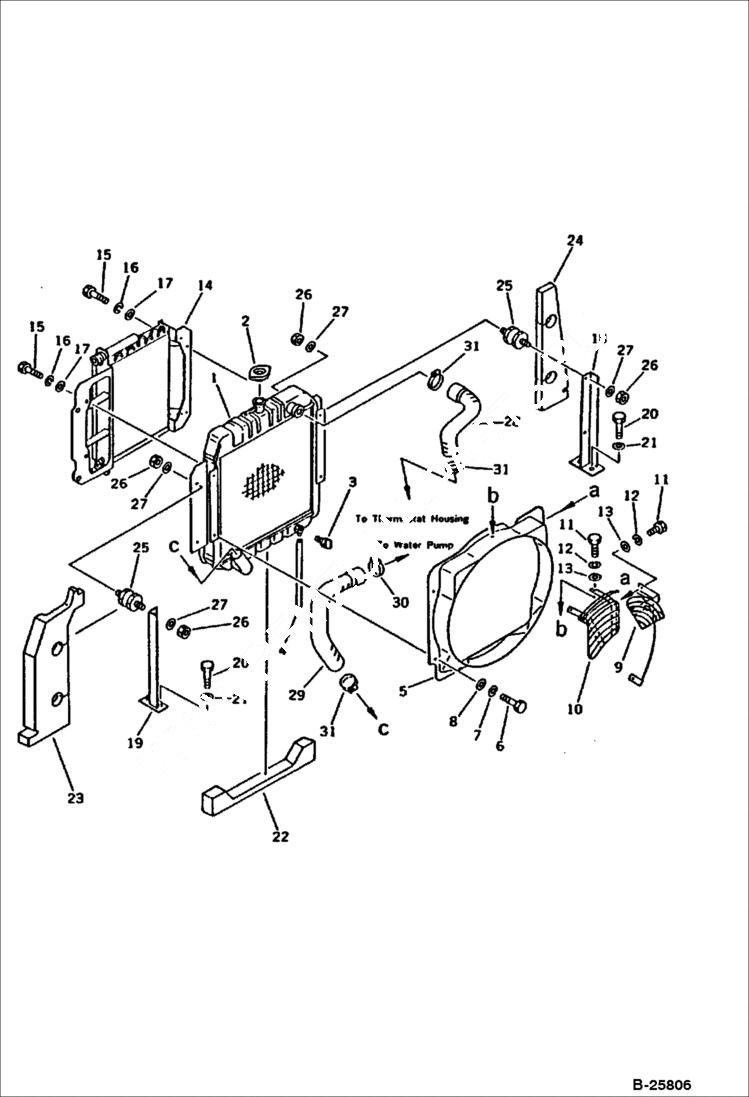

Запчасти Bobcat 116 RADIATOR AND PIPING Komatsu S/N 11900 & Abv. ENGINE RELATED PARTS AND ELECTRICAL SYSTEM

1

CORE ASSY Komatsu S/N 11900 & Abv - Was 20T-03-41110

2

6639024

CAP

3

6639252

PLUG

4

TUBE Was 07270-00827

5

SHROUD Komatsu S/N 11900 & Abv - Was 20T-03-41120

6

6636957

BOLT

7

6637134

WASHER

8

6637156

WASHER

9

NET Komatsu S/N 11900 & Abv - Was 20T-03-41151

10

NET Komatsu S/N 11900 & Abv - Was 20T-03-41190

11

6636957

BOLT Komatsu S/N 11900 & Abv

12

6637134

WASHER Komatsu S/N 11900 & Abv

13

6637156

WASHER Komatsu S/N 11900 & Abv

14

OIL COOLER See Illustration HYDRAULIC BREAKER/ SC1106 - Komatsu S/N 11900 & Abv - Was 20T-03-41311

15

6636958

BOLT

16

6637134

WASHER

17

6637156

WASHER

18

6638979

BRACKET

19

6638980

BRACKET

20

6636967

BOLT

21

6637157

WASHER

22

SHEET Komatsu S/N 11900 & Abv - Was 20T-03-41250

23

SHEET Komatsu S/N 11900 & Abv - Was 20T-03-41212

24

SHEET Komatsu S/N 11900 & Abv - Was 20T-03-41223

25

6671136

MOUNT cushion - Komatsu S/N 11900 & Abv

26

6637107

NUT Komatsu S/N 11900 & Abv

27

6637156

WASHER Komatsu S/N 11900 & Abv

28

6673898

HOSE RADI Komatsu S/N 11900 & Abv

29

HOSE Komatsu S/N 11900 & Abv - Was 20T-03-41180

30

6649140

CLAMP Komatsu S/N 11900 & Abv

31

6649140

CLAMP Komatsu S/N 11900 & Abv - Was 207-09-11110
