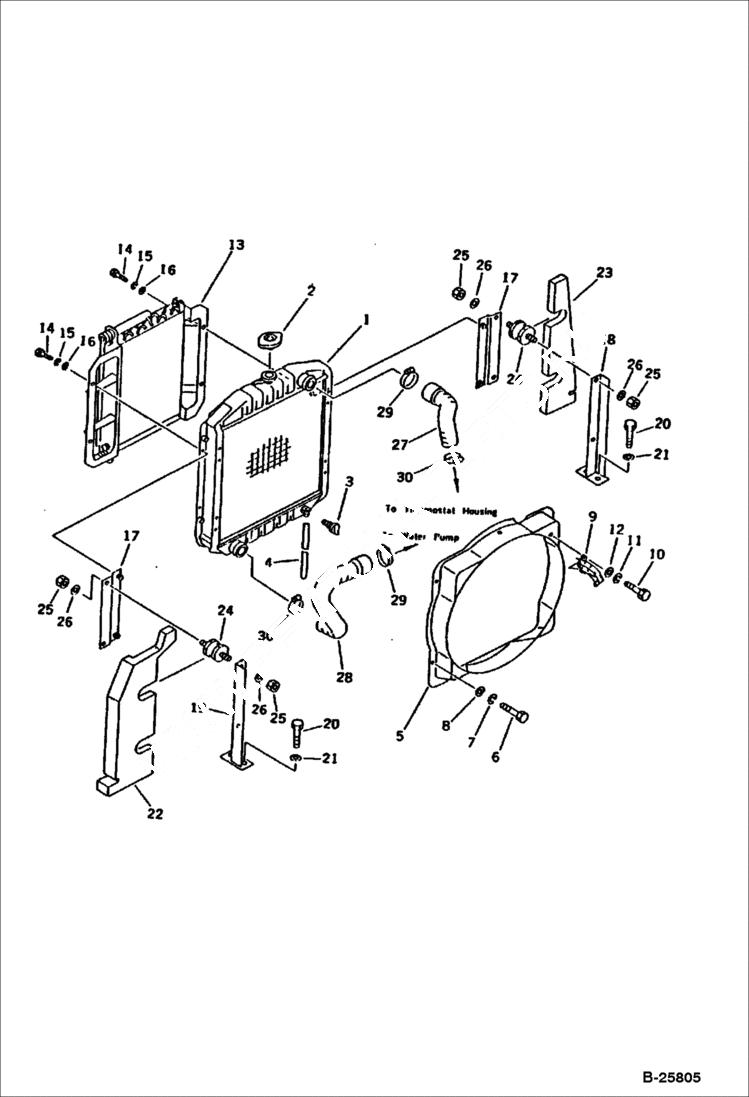

Запчасти Bobcat 116 RADIATOR AND PIPING Komatsu S/N 10001-11899 ENGINE RELATED PARTS AND ELECTRICAL SYSTEM

1

6638977

CORE ASSY Komatsu S/N 10001-11899

2

6639024

CAP

3

6639252

PLUG

4

TUBE Was 07270-00827

5

6638983

SHIELD Komatsu S/N 10001-11899

6

6636957

BOLT

7

6637134

WASHER

8

6637156

WASHER

9

6638984

NET Komatsu S/N 10001-11899

10

6636957

BOLT Komatsu S/N 10001-11899

11

6637134

WASHER Komatsu S/N 10001-11899

12

6637156

WASHER Komatsu S/N 10001-11899

13

OIL COOLER See Illustration HYDRAULIC BREAKER/ SC1106 - Komatsu S/N 10001-11899 - Was 20T-03-41310

14

6636958

BOLT

15

6637134

WASHER

16

6637156

WASHER

17

BRACKET Was 20T-03-41230

18

6638979

BRACKET

19

6638980

BRACKET

20

6636967

BOLT

21

6637157

WASHER

22

SHEET Komatsu S/N 10001-11899 - Was 20T-03-41211

23

6658853

SHEET Komatsu S/N 10081-11899

24

CUSHION Komatsu S/N 10001-11899 - Was 20S-63-11330

25

6637108

NUT Komatsu S/N 10001-11899

26

6637157

WASHER Komatsu S/N 10001-11899

27

6638981

HOSE Komatsu S/N 10001-11899

28

6638982

HOSE Komatsu S/N 10001-11899

29

6649140

CLAMP Komatsu S/N 10001-11899

30

6649140

CLAMP Komatsu S/N 10001-11899
