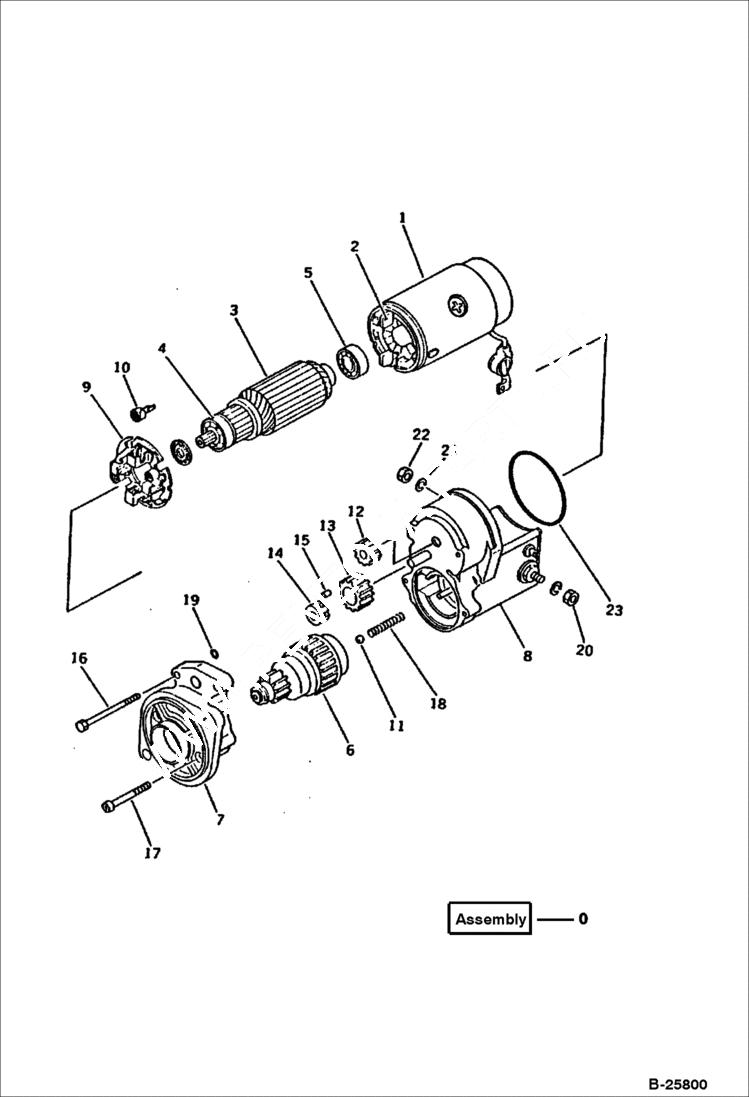

Запчасти Bobcat 116 STARTING MOTOR ELECTRICAL SYSTEM

0

6639932

MOTOR ASSY

1

6646153

YOKE ASSY Was ND028100-3492

2

6646152

STARTER KIT Was ND028099-3550

3

6643380

ARMATURE

4

6636210

BEARING

5

6636211

BEARING

6

6636201

CLUTCH ASSEMBLY

6

CLUTCH ASSY Was ND028300-2081

6

SPRING Was ND949170-4260

6

SHAFT Was ND028381-0040

7

6646154

HOUSING Was ND028401-6331

8

6636203

SWITCH

8

STARTER KIT Was ND028099-2820

8

STARTER KIT Was ND028099-3390

8

PLUNGER ASSY Was ND053660-0401

8

6636204

GASKET switch

8

COVER, SOLENOID Was ND053505-0620

9

6636202

RETAINER holder sub assembly - brush

10

6646159

SPRING, BRUSH Was ND949173-0610

11

6641643

BALL

12

6643381

PINION

13

6643382

PINION

14

6641640

RETAINER

15

6641641

ROLLER

16

6646157

BOLT, THROUGH Was ND949042-2860

17

6646156

SCREW

18

6643383

SPRING

19

6636205

O-RING

20

6646158

NUT Was ND949056-1370

21

6641642

WASHER, S

22

6646155

NUT Was ND90190-08651

23

6636212

O-RING
