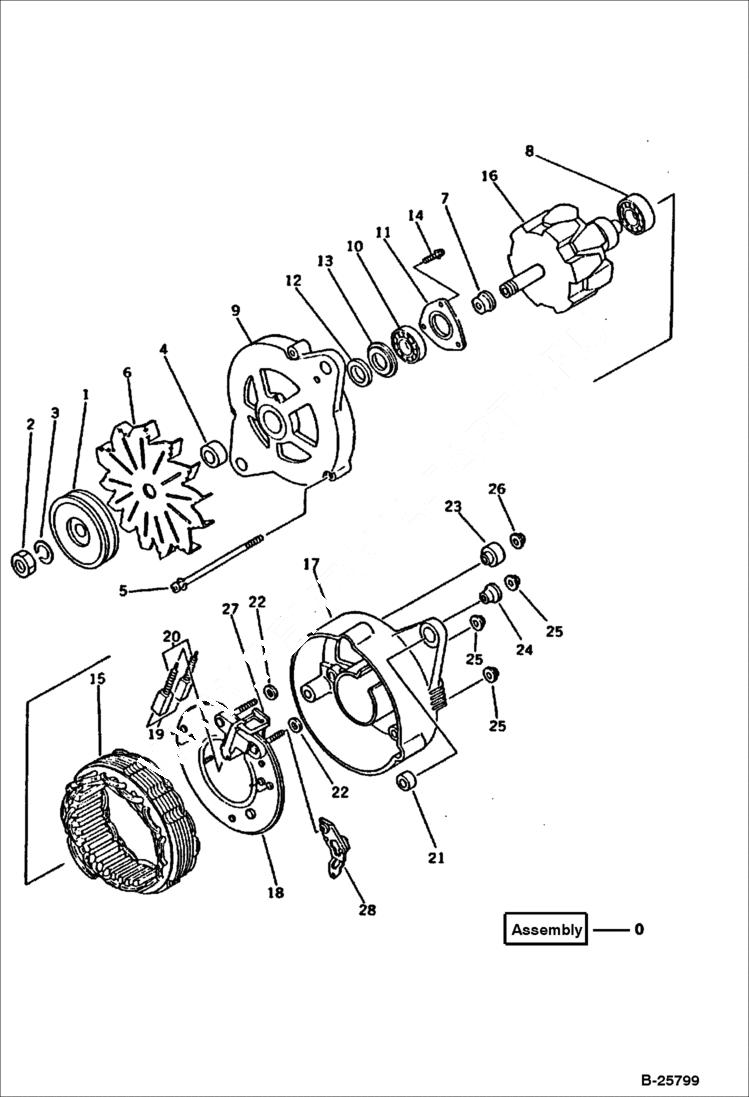

Запчасти Bobcat 116 ALTERNATOR (35 AMP) ELECTRICAL SYSTEM

0

6639939

ALTERNATOR 35A

1

6636193

PULLEY

2

6646783

NUT

3

6646784

WASHER

4

6646785

COLLAR

5

6646786

BOLT

6

6646787

FAN

7

6646788

COLLAR

8

6636209

BEARING

9

6636196

FRAME ASSY

10

6636208

BEARING

11

6646789

RETAINER

12

6646790

WASHER felt

13

6646791

COVER felt

14

6636206

SCREW

15

6636194

STATOR

16

6636195

ROTOR ASSY

17

FRAME, REAR Was ND021501-4940

18

6636199

RECTIFIER alternator kit

19

6636198

BRUSH

20

6636213

SPRING

21

BUSHING, INSUALTE Was ND021541-0321

22

BUSHING, INSUALTE Was ND021605-0890

23

BUSHING, INSUALTE Was ND021605-0301

24

6636197

INSULATOR bushing

25

6636207

NUT

26

6646795

NUT

27

6646796

WASHER

28

6636200

REGULATOR
