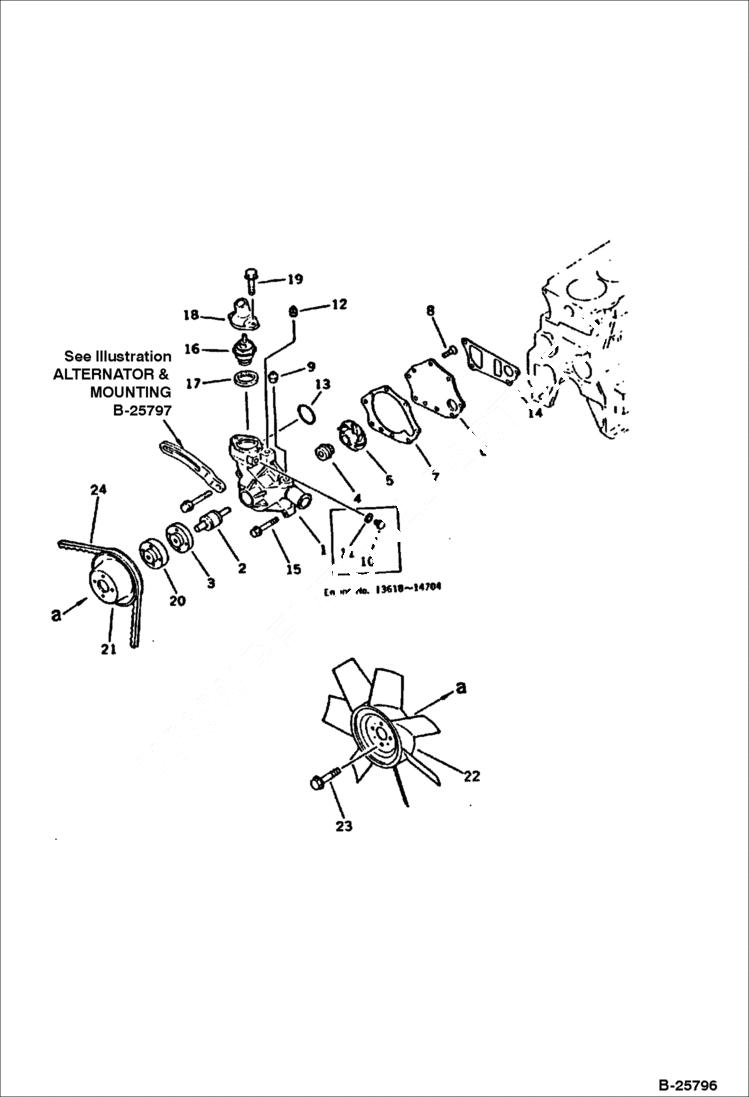

Запчасти Bobcat 116 WATER PUMP COOLING FAN COOLING SYSTEM

1

WATER PUMP ASSY Komatsu S/N 15067 & Abv - Was 6204-61-1102

1

PUMP ASSY water - Komatsu S/N 13618-15056 - Was 6204-61-1101

1

PUMP ASSY water - Komatsu S/N 13618-14088 - Was 6204-61-1100

1

BODY

2

6640197

SHAFT Komatsu S/N 15067 & Abv

2

6640197

SHAFT Komatsu S/N 13618-15066

3

6640157

BOSS

4

6667473

SEAL Komatsu S/N 15067 & Abv

4

SEAL, WATER Komatsu S/N 13618-15066 - Order Ref 4 & 5

4

SEAL water - Komatsu S/N 13618-14088 - Was 6204-61-1510

5

6640156

IMPELLER Komatsu S/N 15067 & Abv

5

IMPELLER Komatsu S/N 13618-15066 - Order Ref 4 & 5

6

6640154

COVER

7

6640155

GASKET

8

6637048

SCREW

9

6637440

PLUG

10

6640214

PLUG Komatsu S/N 13618-14704

11

6637424

SEAL Komatsu S/N 13618-14704

12

6637440

PLUG

13

6637359

O-RING

14

6640198

GASKET

15

6637085

BOLT

16

6639929

THERMOSTA

17

6639956

GASKET

18

6640050

CONNECTOR

19

6637082

BOLT

20

6640162

SHIM spacer

21

6640031

PULLEY non hardening

21

PULLEY, NON-HARDENING, OVERSIZE Was 6202-61-3220

22

FAN NLA - Was 6644833 - A

23

6642027

BOLT

24

6665342

V-BELT
