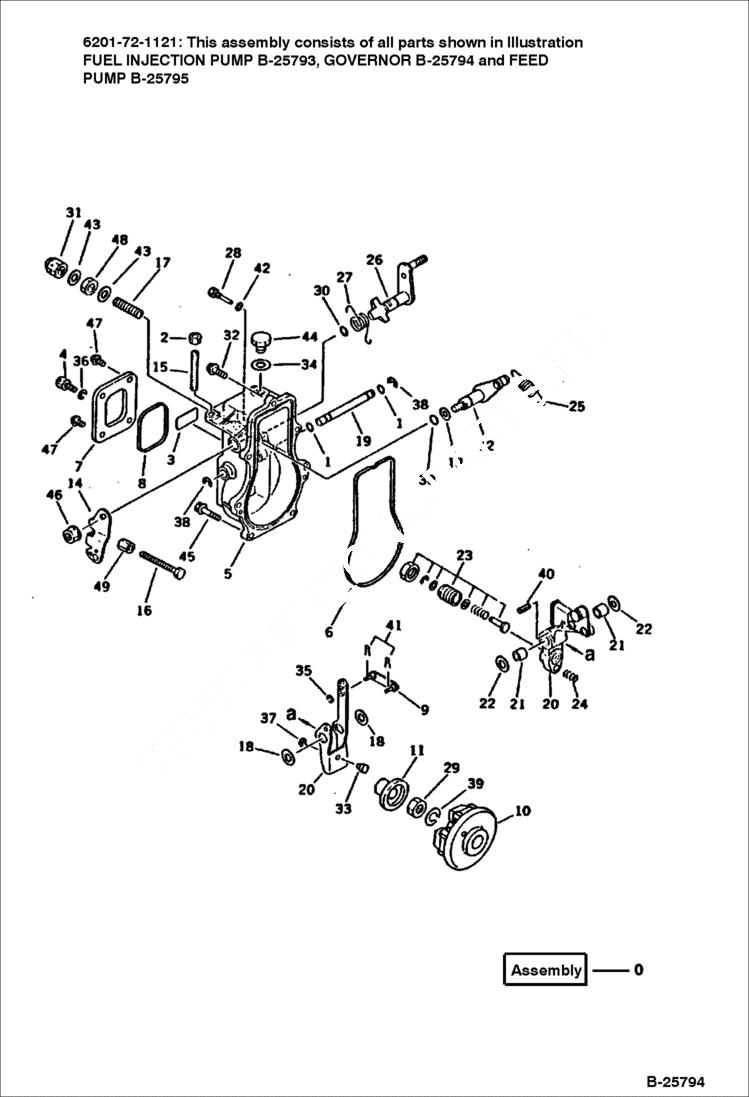

Запчасти Bobcat 116 GOVERNOR FUEL SYSTEM

0

6649195

FUEL INJECTION PUMP ASSY Was 6201-72-1121

1

6636687

O-RING

2

6636617

LOCK NUT

3

LABEL, FUEL PUMP Was YM171353-51930

4

6636717

BOLT

5

6636713

HOUSING case - governor

6

6636714

PACKING governor case

7

6636715

COVER governor case

8

6636716

PACKING gasket cover

9

6636718

LINK L=28

9

6641882

LINK L=29

9

6641877

LINK L=30

9

6641878

LINK L=31

9

6641879

LINK L=32

9

6641880

LINK L=33

9

6641881

LINK L=34

10

GOVERNOR WEIGHT A. Was YM171488-61200

11

6636720

SLEEVE

12

6636639

HOUSING shaft assembly - control

13

6636721

WASHER

14

LEVER, CONTROL Was YM1171353-61440

15

6636722

BOLT

16

6641883

BOLT idle asjusting

17

6641884

BOLT fuel control

18

6636723

WASHER

19

6636724

SHAFT

20

6641927

LEVER

21

6636725

BUSHING

22

6636772

SHIM ASMBLY

23

ANGLEICH ASSY Was YM171353-61590

24

SPRING, FUEL CONTROL Was YM119800-61650

25

SPRING, GOVERNOR Was YM129100-61720

26

LEVER, STOP Was YM171353-61851

27

SPRING Was YM129100-61820

28

6636727

PIN

29

6636899

LOCK NUT

30

6636728

O-RING

31

6636644

NUT

32

6636729

BOLT

33

6636726

SHIFTER

34

6636777

WASHER

35

6636774

WASHER

36

6636779

WASHER, SPRING

37

6636785

RING

38

6641946

RING, SNA

39

6636788

WASHER

40

6636793

PIN

41

6636798

PIN

42

6636806

GASKET

43

6636913

SEAL

44

6641957

PLUG

45

6636865

BOLT

46

6636884

NUT

47

SCREW Was YM26022-050102

48

NUT Was YM26696-120002

49

NUT Was YM171353-61470
