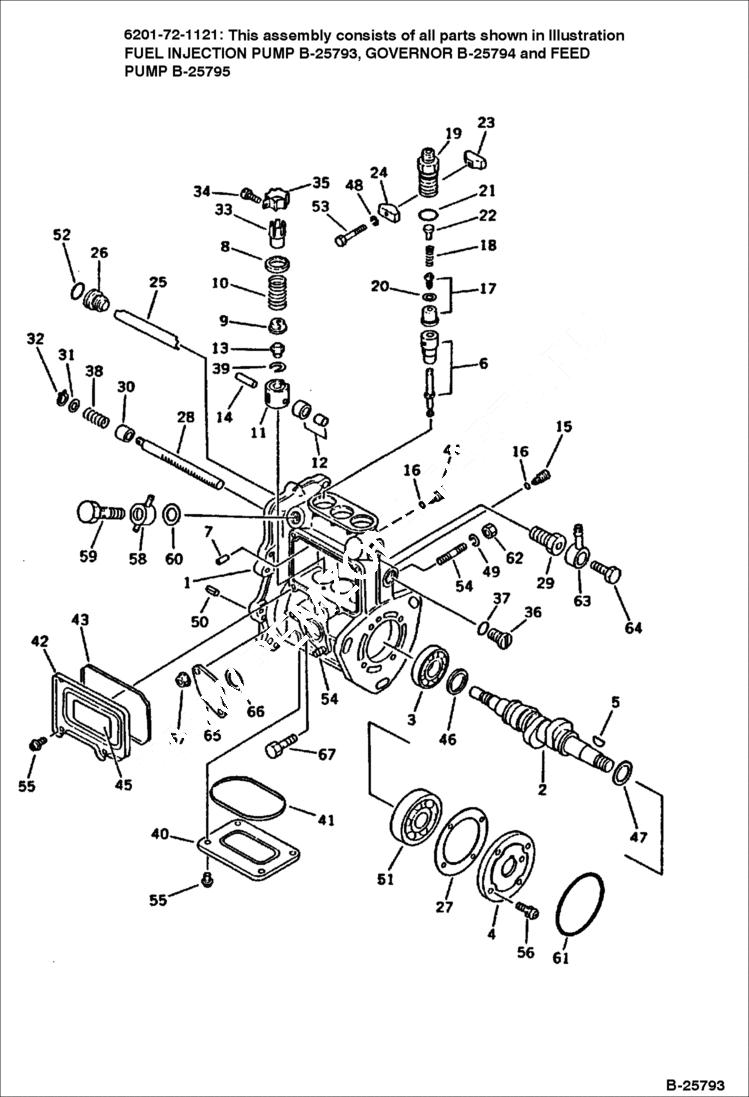

Запчасти Bobcat 116 FUEL INJECTION PUMP FUEL SYSTEM

1

6649195

FUEL INJECTION PUMP ASSY Was 6201-72-1121

1

PUMP ASSY Was YM771353-51200

2

6646172

CAM SHAFT

3

6636680

WASHER, T bearing

4

6636681

CAGE retainer - bearing

5

6636579

KEY

6

6641939

PLUNGER

7

6636682

PIN barrel

8

6636769

RETRAINER seat

9

6636683

SEAT retainer - spring

10

6636626

SPRING plunger

11

6636684

TAPPET

12

6636914

GUIDE ROL

13

6636685

BOLT

14

6636768

PIN

15

6636686

RING, SNAP stopper - tappet

16

6636687

O-RING

17

6641864

VALVE delivery

18

6636688

SPRING delivery

19

6646175

SEAT holder - valve

20

6636612

PACKING

21

6636613

O-RING

22

6636690

STOPPER

23

6636691

SHIELD

24

6636692

SHIELD

25

6636693

SHIELD

26

6636694

BOLT

27

6636695

PACKING shim assembly

28

6636696

RACK

29

PLUG, DEFLECTOR Was YM129100-51420

30

6636697

BUSHING

31

6636698

WASHER

32

6636699

RING, SNAP

33

6636700

GEAR pinion - control

34

6636578

SCREW

35

6636771

RING clamp

36

6636701

PLUG

37

6636702

O-RING

38

6636703

SPRING

39

SHIM Was YM119865-51600

40

6641875

COVER

41

6641876

PACKING

42

6636705

COVER

43

6636706

PACKING

44

6636707

SHIELD

45

6636730

SHIELD plate - caution

46

6636708

WASHER spacer - 3.25 mm

47

6636709

WASHER spacer - 1.5 mm

48

6636779

WASHER, SPRING

49

6636789

WASHER

50

6636795

PIN

51

6636818

BEARING

52

6636825

O-RING

53

6636868

BOLT

54

6636875

STUD

55

SCREW Was YM26022-050102

56

SCREW Was YM26022-060162

57

6636886

NUT

58

6636638

JOINT

59

6636637

VALVE

60

6641954

PACKING

61

6636577

O-RING

62

6636896

NUT

63

6636307

CONNECTOR

64

6641804

BOLT

65

COVER, BLIND Was YM129100-52200

66

6636710

PACKING

67

6636616

BOLT
