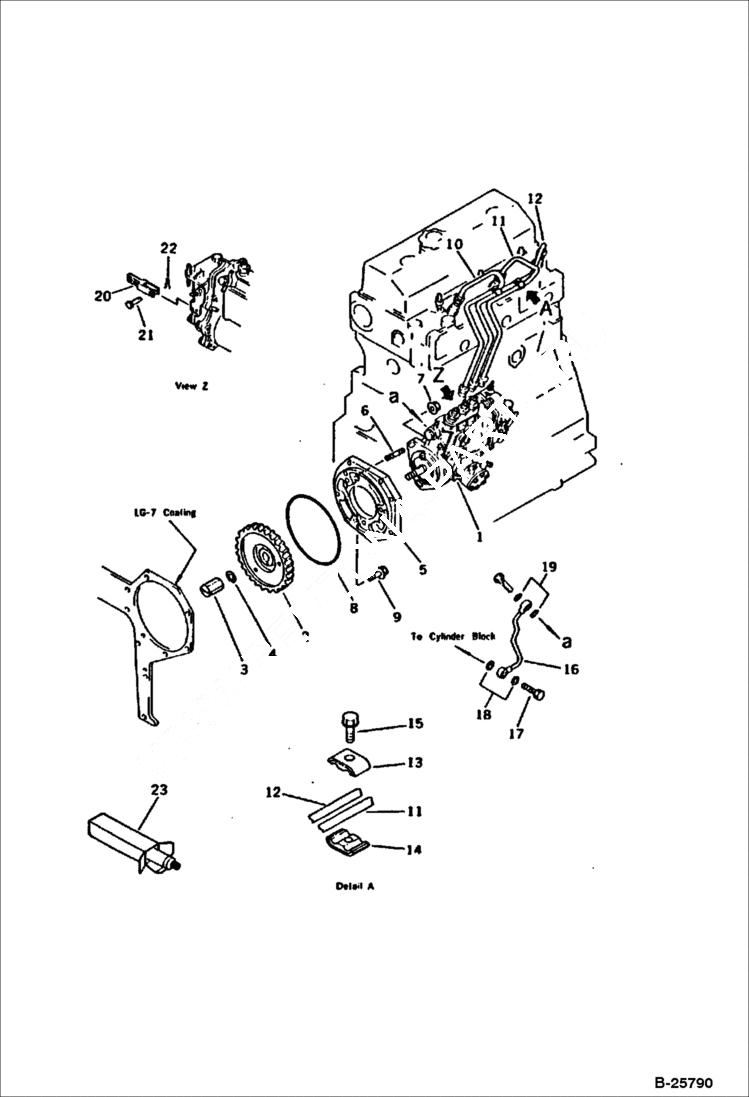

Запчасти Bobcat 116 FUEL INJECTION PUMP AND PIPING FUEL SYSTEM

1

6649195

FUEL INJECTION PUMP ASSY See Illustration FUEL INJECTION PUMP/ B25793 Was 6201-72-1121

2

6640015

GEAR

3

6640172

NUT

4

6637162

LOCK washer

5

6640014

RETAINER

6

6637023

STUD

7

6637116

NUT

8

6637352

O-RING

9

6640171

BOLT

10

6640017

TUBE injection - No. 1

11

6640019

TUBE injection - No. 2

12

6640018

TUBE injection - No. 3

13

6639969

CLIP

14

6640201

CLAMP

15

6640202

BOLT

16

6640016

PIPE oil

17

6637577

CONNECTOR

18

6637421

SEAL

19

6637420

SEAL

20

YOKE Was 20T-43-32220

21

6637252

PIN

22

6637211

PIN

23

6642174

GASKET liquid - LG-7, 150G
