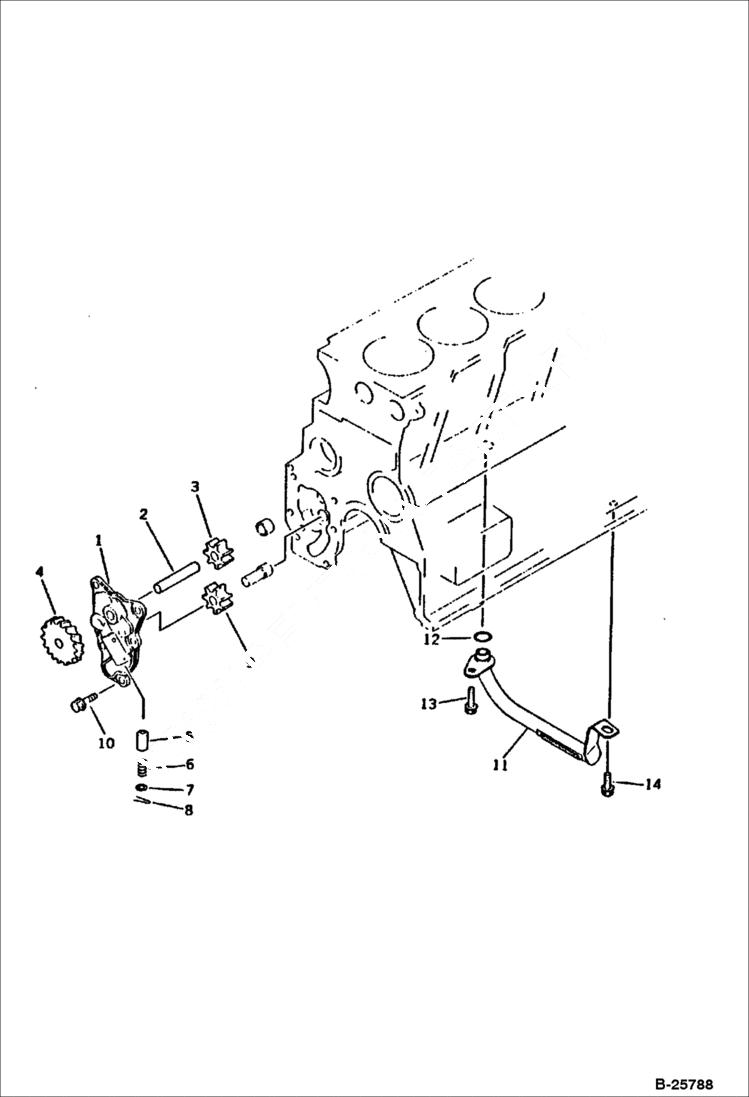

Запчасти Bobcat 116 LUBRICATING OIL PUMP AND SUCTION PIPING LUBRICATING OIL SYSTEM

1

COVER, OIL PUMP Komatsu S/N 16011 & Abv - Was 6204-51-1211

1

6640138

COVER oil pump - Komatsu S/N 13618-16010

2

6640143

SHAFT ASSY

3

6640144

GEAR drive

4

6640196

GEAR

5

6640139

VALVE

6

6640140

SPRING

7

6640141

WASHER

8

6640142

PIN, COTTER

9

6640146

GEAR driven

10

6637081

BOLT

11

TUBE suction - Was 6640010 - A

12

6639958

O-RING

13

6637081

BOLT

14

6637079

BOLT
