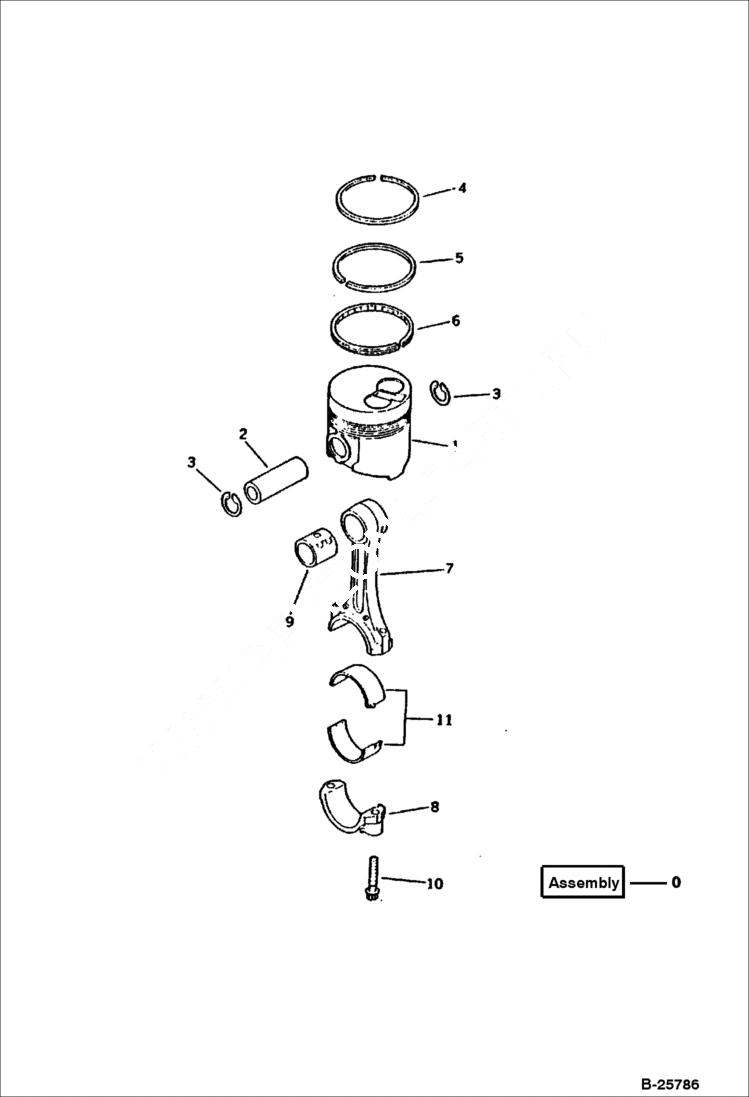

Запчасти Bobcat 116 PISTON AND CONNECTING ROD CYLINDER BLOCK

0

PISTON RING ASSEMBLY standard - per cylinder Komatsu S/N 15314 & Abv. - Was 6202-32-2201

0

6640029

RING ASSY standard - per cylinder - Komatsu S/N 13618-15313

0

PISTON RING ASSEMBLY oversize 0,25 mm - per cylinder - Komatsu S/N 15314 & Abv. - Was 6202-39-2201

0

6643139

RING ASSY oversize 0,25 mm - per cylinder - Komatsu S/N 13618-15313

0

PISTON RING ASSEMBLY oversize 0,50 mm - per cylinder - Komatsu S/N 15314 & Abv. - Was 6202-38-2201

0

6643137

RING ASSY oversize 0,50 mm - per cylinder - Komatsu S/N 13618-15313

1

6640003

PISTON standard (L)

1

6640004

PISTON standard (S)

1

6643135

PISTON oversize 0,25 mm (L)

1

6643136

PISTON oversize 0,25 mm (S)

1

6643133

PISTON oversize 0,50 mm (L)

1

6643134

PISTON oversize 0,50 mm (S)

2

6640100

PIN

3

6637230

RING, SNAP

4

RING, TOP

5

RING, SECOND

6

RING, OIL

7

6640101

ROD, CONN Was 6204-31-3100

7

ROD, CONN

8

CAP

9

6640104

BUSHING

10

6640105

BOLT

11

6640106

METAL ASY standard

11

6643184

METAL ASY undersize 0,25 mm

11

6643177

METAL ASSY undersize 0,50 mm

11

6643170

METAL ASY undersize 0,75 mm

11

6643168

METAL ASSY undersize 1,00 mm
