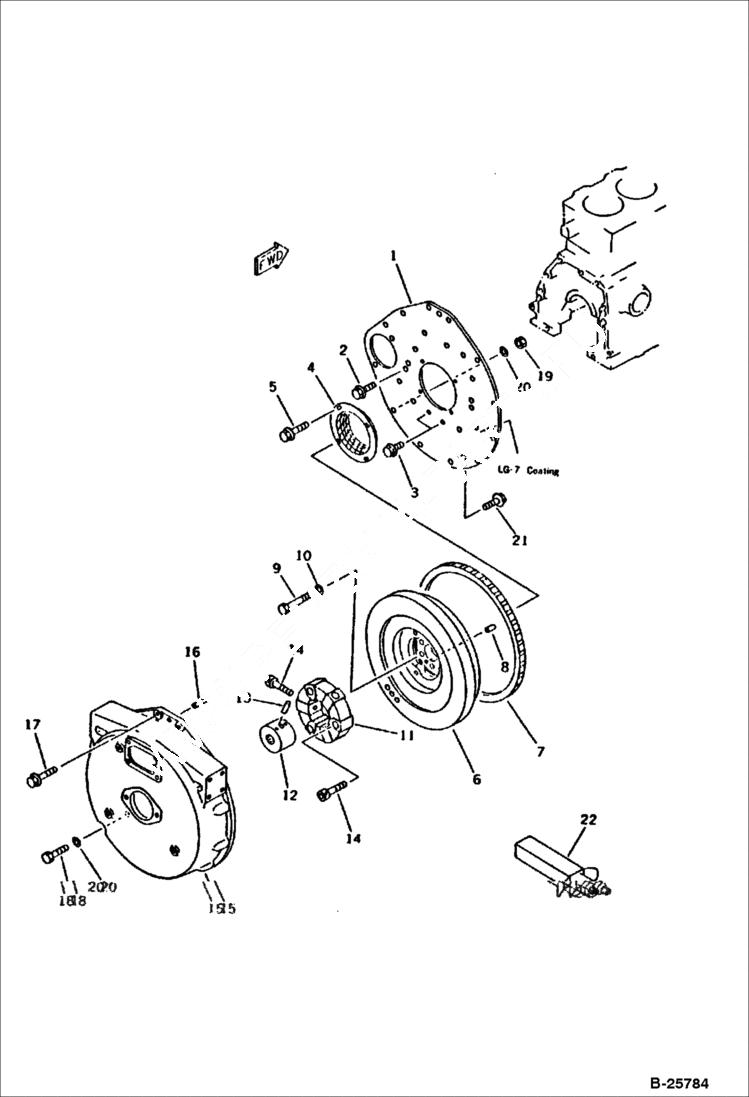

Запчасти Bobcat 116 FLYWHEEL AND FLYWHEEL HOUSING CYLINDER BLOCK

1

PLATE Was 6201-21-4130

2

6637069

BOLT

3

6637066

BOLT

4

6639997

SEAL rear

5

BOLT Was 6201-21-4520

6

6644838

FLYWHEEL

7

GEAR, RING Was 6202-31-4190

8

6637175

PIN, DOWEL

9

6637014

BOLT

10

6639944

SHIELD washer

10

6638961

COUPLING

11

6642894

RUBBER

12

6642895

BOSS

13

6637186

PIN, ROLL

14

6637058

BOLT

15

6644836

HOUSING

16

6637176

PIN, DOWEL

17

6637071

BOLT

18

6637016

BOLT

19

6637112

NUT

20

6637147

WASHER

21

6637069

BOLT

22

6642174

GASKET liquid - LG-7, 150G
