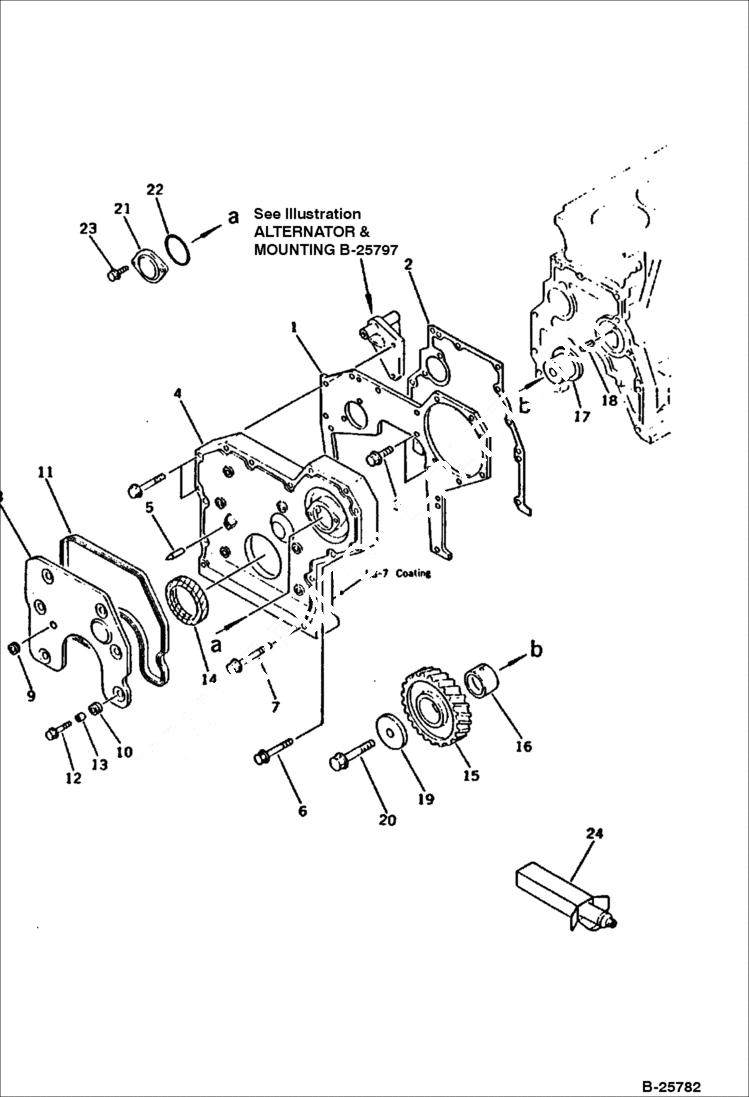

Запчасти Bobcat 116 FRONT COVER AND GEAR CYLINDER BLOCK

1

6640188

SHIELD

2

GASKET Was 6206-21-3830

3

6637081

BOLT

4

6640061

COVER

5

6640071

PIN

6

6637088

BOLT

7

6637089

BOLT

8

6640064

COVER

9

6640066

GROMMET

10

6640067

GROMMET

11

6640065

PACKING

12

6637077

BOLT

13

6640068

SPACER

14

6640069

SEAL

15

IDLER GEAR ASSY Komatsu S/N 14144 & Abv - Was 6206-31-6301

15

6640192

GEAR ASSY Komatsu S/N 13618-14143 - W/Ref. 17 (6206-31-6301, 6640113)

16

BUSHING Komatsu S/N 14144 & Abv - Was 6204-31-6341

16

6640114

BUSHING Komatsu S/N 13618-14143

17

6640113

SHAFT Komatsu S/N 13867 & Abv

17

6640113

SHAFT Komatsu S/N 13618-13866

18

6637186

PIN, ROLL

19

6640115

WASHER

20

6637073

BOLT

21

6639971

SHIELD

22

6637362

O-RING

23

6637076

BOLT

24

6642174

GASKET liquid - LG-7, 150G
