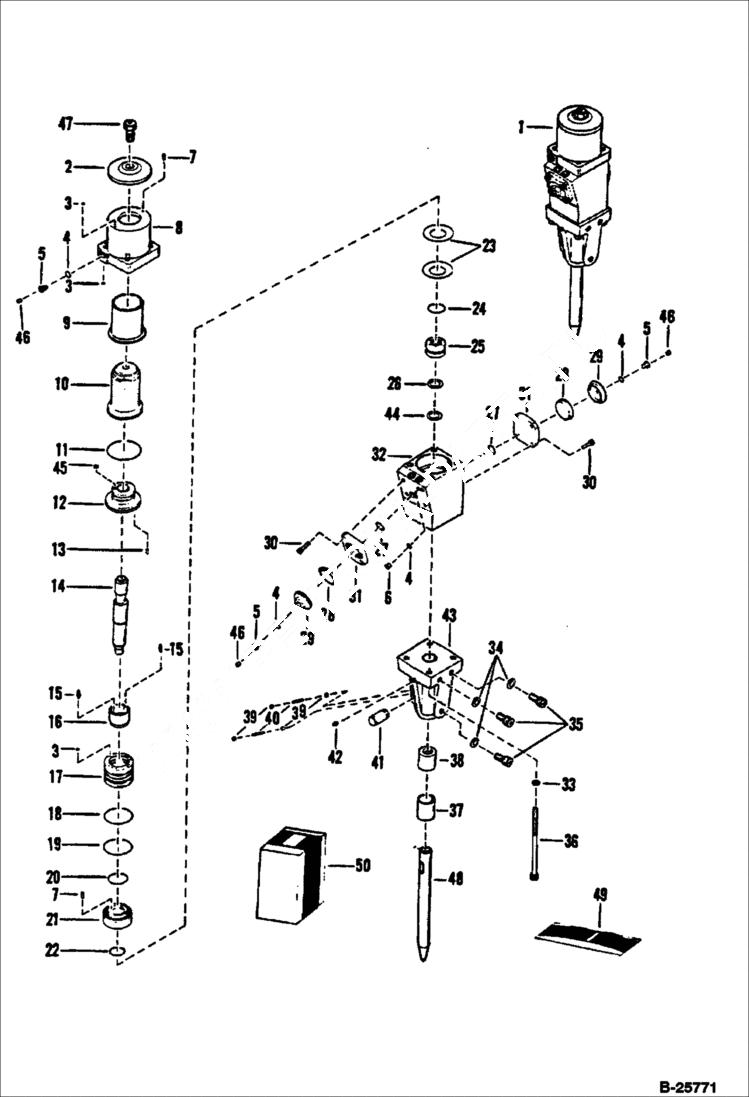

Запчасти Bobcat 116 HYDRAULIC BREAKER (2500) ACCESSORIES & OPTIONS

1

BREAKER SALES - Ref 2-48

2

PLATE NLA - Was 6630649 - A

3

6630641

O-RING

4

79K8

O RING 10

5

6630633

VALVE charge - W/relief

6

47K6

PLUG plug

7

209968

PIN

8

CHAMBER NLA - Was 6630648 - A

9

6630647

DIAPHRAGM

10

6630646

SCREEN main

11

58K258

O RING 10

12

MANIFOLD NLA - assy - Was 6630645 - A

13

742953

ROLL PIN

14

6630644

HAMMER

15

6630643

PIN push

16

VALVE NLA - Order Ref 50 - Komatsu S/N 193 & Bel

16

VALVE NSS - Order Ref 50 - Komatsu S/N 194 & Abv

17

VALVE NSS - Order Ref 50 - Komatsu S/N 193 & Bel

17

VALVE NSS - Order Ref 50 - Komatsu S/N 194 & Abv

18

6630673

SEAL poly-pac, 1/8 x 5-1/4

19

6630672

SEAL poly-pac, 1/8 x 5-1/4

20

58K238

O-RING

21

VALVE NLA - seat - Was 6630639 - A

22

6630638

SEAL poly-pac, W/ O-ring removed

23

DISC NLA - Spring - Was 6630637 - A

24

58K235

O RING 10

25

6630636

BEARING lower

26

6630634

SEAL poly-pac

27

58K224

O RING 10

28

6630631

DIAPHRAGM accumulator

29

6630632

PLUG accumulator

30

73G1028

BOLT

31

6630630

SCREEN accumulator

32

6630628

BODY main

33

6631423

WASHER

34

6568537

WASHER cone - 1'' I.D. x 1.68'' O.D.

34

6654811

WASHER

35

BOLT NLA - Was 73G001632B - A

35

6654810

BOLT

36

6656345

BOLT - A

37

BEARING NLA - Was 6630621 - A

38

STOP NLA - Was 6630622 - D

39

6630623

SPRING retainer pin

40

6630624

PIN retainer

41

6630625

PIN retainer

42

6630626

GREASE ZERK

43

6648906

BODY lower - W/Ref 37-42 - Was 6630627 - A

44

6630635

SEAL poly-pac, W/ O-ring removed

45

PLUG NLA - orifice - plug W/.20'' hole - Was 6633700 - A

46

6630682

PLUG

47

BOLT NLA - Was 6630650 - A

48

6630606

POINT conical - moil

48

6630607

CHISEL cross cut

48

6630608

CHISEL in-line

48

6630609

ASPH.CUTT includes Asphalt Blade and old style Tool Shank

48

6630804

BLADE asphalt

48

6630610

TAMPING PAD includes Tamping Pad and new style Tool Shank

48

6630802

BLUNT TOOL

48

6630803

ASPH.SHAN *SEE NOTES* old style for Use W/asphalt blade

49

6630787

SEAL KIT Ref 3,4,6,11,18-20,22,24,26,27 & 44

50

6632220

VALVE KIT Ref 16 & 17
