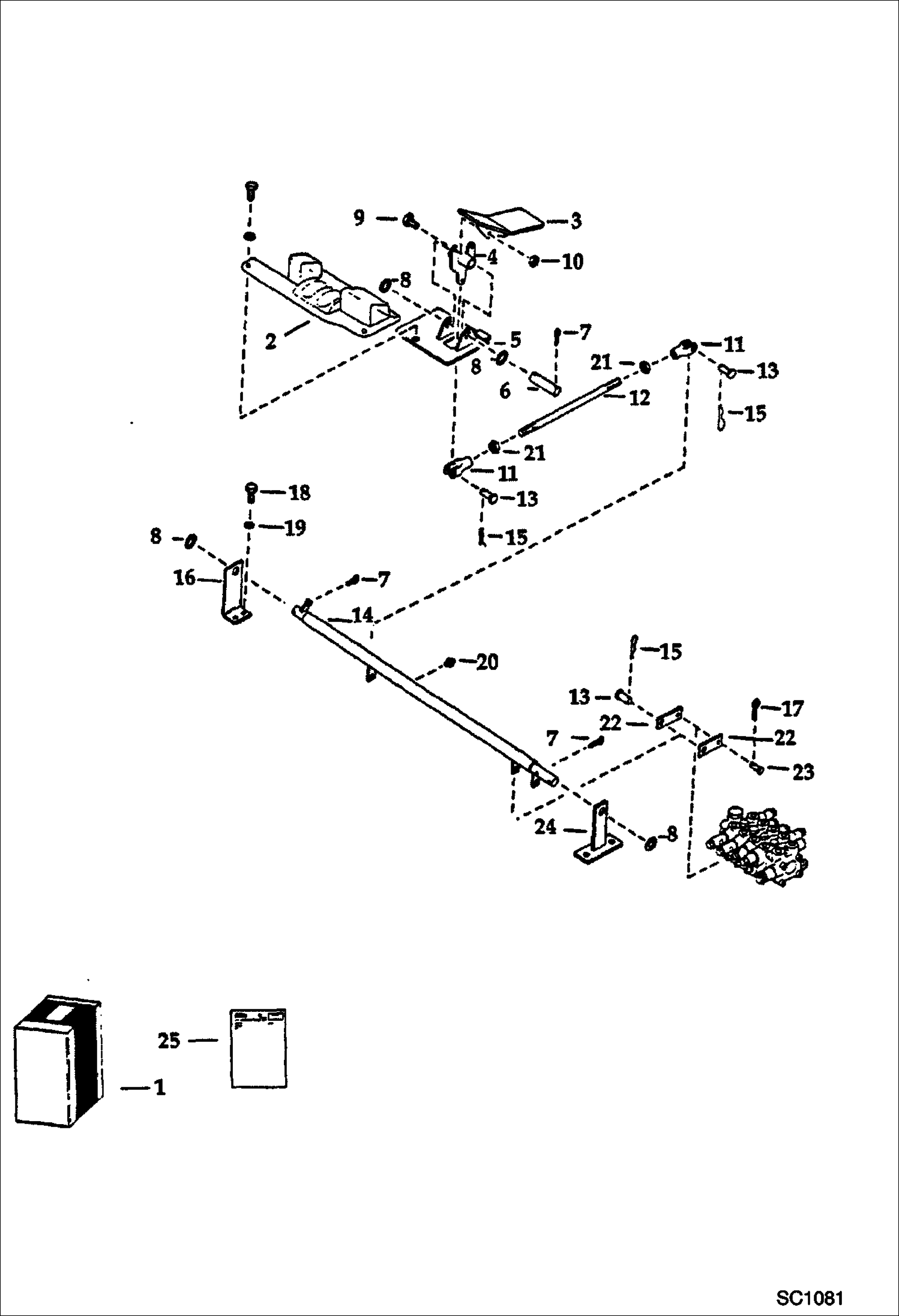

Запчасти Bobcat 116 AUXILIARY HYDRAULICS (Bobcat - 6.9 GPM) (Control Pedal) ACCESSORIES & OPTIONS

1

KIT NLA - order individual parts

2

6638785

COVER See instructions for Modification Procedure

3

6530741

PEDAL

4

6530748

PIVOT

5

6530744

BASE

6

6530751

PIN

7

1F624

PIN

8

25E27

WASHER

9

17C514

BOLT

10

85D5

NUT 5

11

6564655

CLEVIS rod end

12

6530763

ROD

13

6564654

PIN

14

6530757

LINKAGE

15

6513495

COTTER PIN

16

6530756

BRACKET

17

1F308

PIN, COTTER

18

6636967

BOLT not included in kit

19

6637135

WASHER not included in kit

20

10H35

FITTING, GREASE 10

21

8D6

NUT 5

22

6530764

BRACKET

23

6560872

PIN

24

6540753

BRACKET

25

6570602

INSTRUCTIONS
