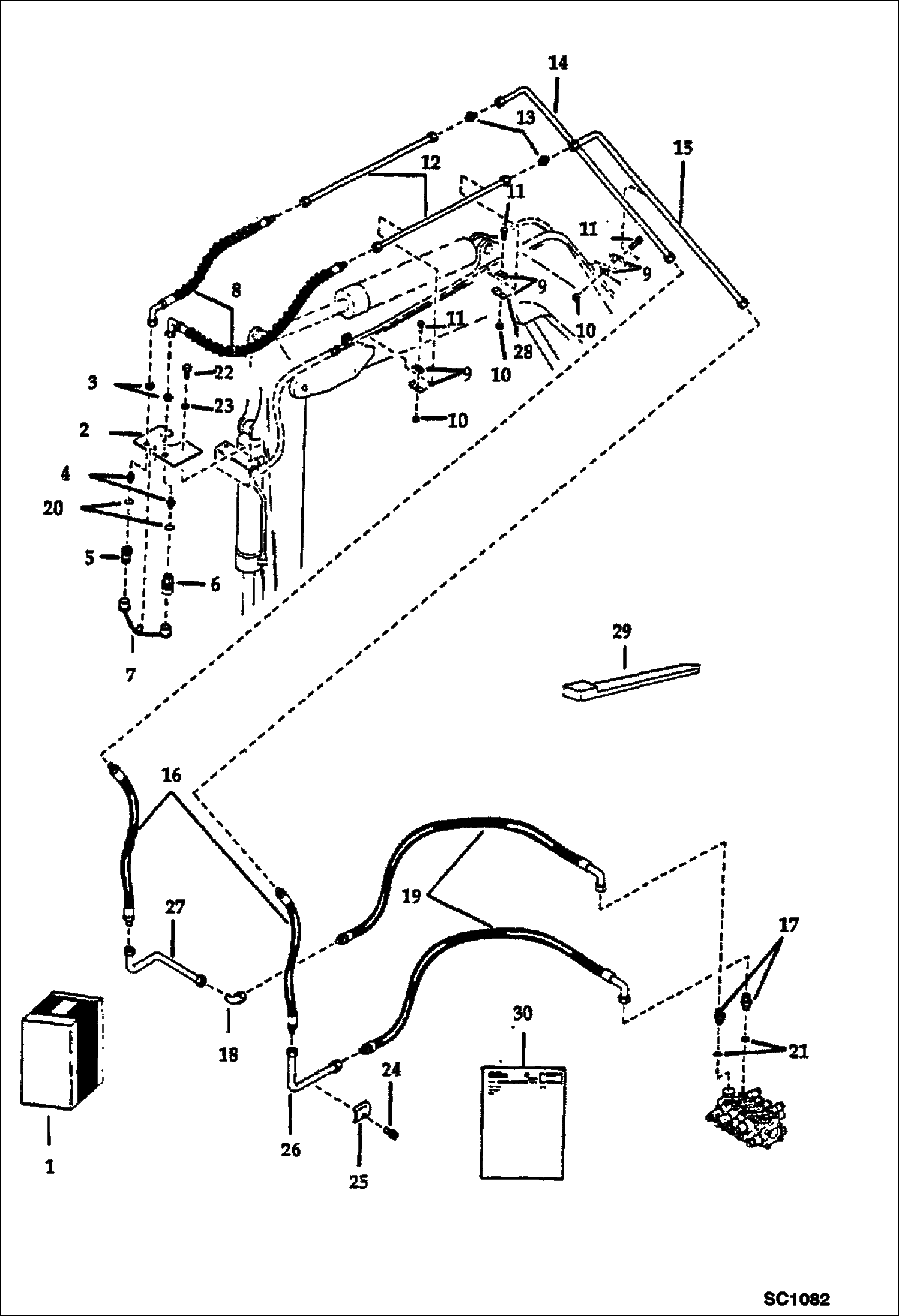

Запчасти Bobcat 116 AUXILIARY HYDRAULICS (Bobcat - 6.9 GPM) ACCESSORIES & OPTIONS

1

KIT NLA - order individual parts

2

6530749

BRACKET

3

86F7

LOCK NUT

4

45K7

CONNECTR W/Ref 28

5

6598757

COUPLER, POPPET MALE straight

6

6598758

COUPLER, POPPET FEMALE straight

7

6513709

CAP PLUG

8

6530782

HOSE

9

6502426

CLAMP

10

85D6

NUT, 5

11

17C628

BOLT

12

6530779

TUBELINE

13

87F7

UNION

14

6530781

TUBELINE

15

6530821

TUBELINE

16

6530780

HOSE

17

6530820

ADAPTER W/Ref 29

18

11K7

ADAPTER

19

6530777

HOSE

20

79K10

O RING 10

21

6637417

O-RING

22

6636966

BOLT not included in kit

23

6637157

WASHER not included in kit

24

1CM835

BOLT

25

6562266

CLAMP

26

6530776

TUBELINE

27

6530778

TUBELINE

28

6530784

CLAMP

29

6624289

STRAP, TIE

30

6570602

INSTRUCTIONS
