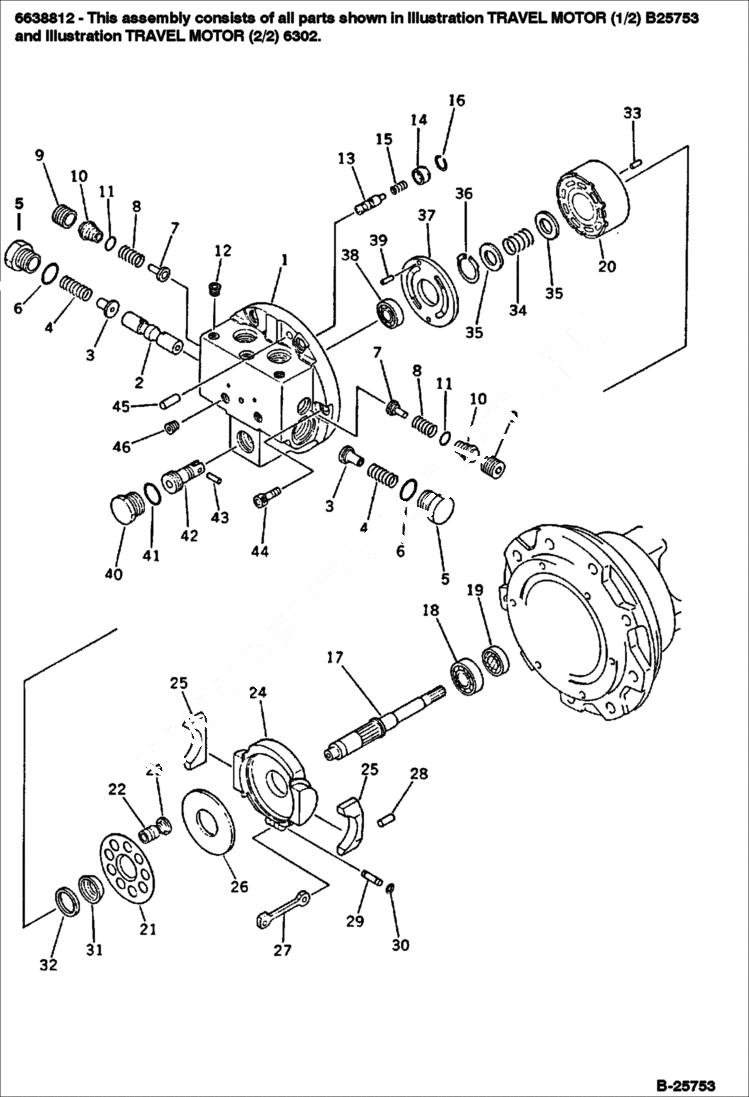

Запчасти Bobcat 116 TRAVEL MOTOR (1/2) WORK EQUIPMENT CONTROL SYSTEM

1

6638812

MOTOR ASY See Illustration TRAVEL MOTOR (2/2)/ 6302 travel - suction & safety

1

6641713

SPOOL ASSEMBLY suction & safety

1

6641695

FLANGE rear

2

6641710

SPOOL

3

6641681

STOPPER

4

6641684

SPRING

5

6641680

PLUG

6

6637383

O-RING

7

6641682

VALVE

8

6641683

SPRING

9

6641711

PLUG

10

6641712

GUIDE

11

6637370

O-RING

12

6641646

PLUG

13

6641704

VALVE

14

6641705

STOPPER

15

6641709

SPRING

16

6641708

RING

17

6641696

SHAFT

18

6642074

BEARING

19

6641662

SEAL OIL

20

6641716

BLOCK cylinder

21

6641718

PLATE retainer

22

6641714

PISTON

22

6641717

PISTON

23

6641678

SHOE

24

6641697

PLATE

25

6641700

GUIDE

26

6641699

PLATE

27

6641702

ROD

28

6641698

PIN

29

6641706

PIN

30

6641658

RING, SNAP

31

BALL,THRUST Was TZ300A200B-00

32

6641720

WASHER

33

6641654

PIN

34

6641721

SPRING

35

6641679

WASHER

36

6641664

RING, SNAP

37

6641719

PLATE

38

6642073

BEARING

39

6641655

PIN

40

6641703

PLUG

41

6637373

O-RING

42

6641701

PISTON

43

6641707

PIN

44

6642022

BOLT

45

6641656

PIN

46

6641647

PLUG
