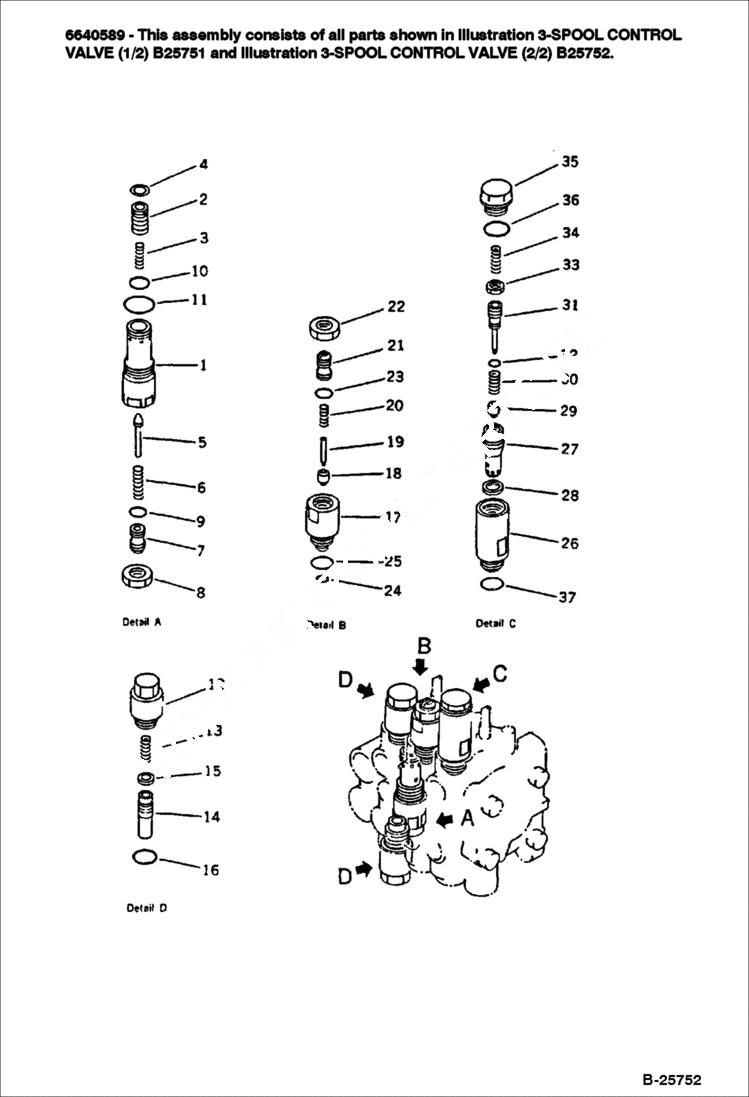

Запчасти Bobcat 116 3-SPOOL CONTROL VALVE (2/2 WORK EQUIPMENT CONTROL SYSTEM

1

6651246

VALVE See Illustration 3-SPOOL CONTROL VALVE (1/2/ B25751 suction & safety

1

6643198

VALVE, RE main relief

1

6643192

SLEEVE

2

6643193

VALVE

3

6640220

SPRING

4

6640217

RING

5

6640258

POPPET

6

6640219

SPRING

7

6640218

SCREW

8

6637115

NUT

9

6637335

O-RING

10

6640243

O-RING

11

6637411

O-RING

12

6640551

VALVE ASY suction

12

6640552

SLEEVE

13

6640221

SPRING

14

6640553

VALVE

15

6640554

SEAL

16

6637410

O-RING

17

6643235

VALVE ASY safety

17

6643231

SLEEVE

18

6643225

POPPET

19

6643232

PISTON

20

6643228

SPRING

21

6643233

SCREW

22

NUT Was 01583-11411

23

6637335

O-RING

24

6640585

O-RING

25

6637410

O-RING

26

6640562

VALVE ASY suction & safety

26

6640555

SLEEVE suction & safety

27

6643224

VALVE suction & safety

28

6640226

SEAL suction & safety

29

6643225

POPPET suction & safety

30

6643229

SPRING suction & safety

31

6643226

SCREW suction & safety

32

6642082

O-RING suction & safety

33

6643194

NUT suction & safety

34

6640221

SPRING suction & safety

35

6640556

PLUG suction & safety

36

6637417

O-RING suction & safety

37

6637410

O-RING suction & safety
