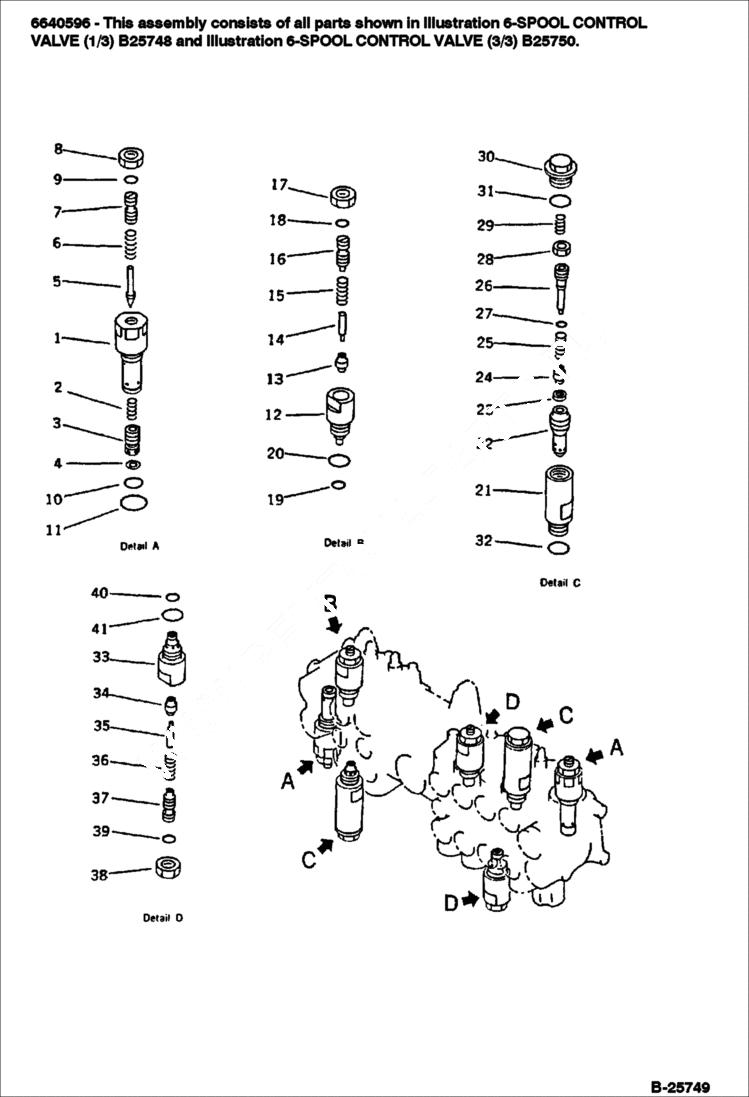

Запчасти Bobcat 116 6-SPOOL CONTROL VALVE (2/3) WORK EQUIPMENT CONTROL SYSTEM

1

6640596

VALVE ASSEMBLY

1

6640256

VALVE

1

6643192

SLEEVE

2

6640220

SPRING

3

6643193

VALVE

4

6640217

RING

5

6640258

POPPET

6

6640219

SPRING

7

6640218

SCREW

8

6637115

NUT

9

6637335

O-RING

10

6640243

O-RING

11

6637411

O-RING

12

6640566

VALVE ASSY safety

12

6643231

SLEEVE

13

6643225

POPPET

14

6643232

PISTON

15

6643229

SPRING

16

6643233

SCREW

17

6637115

NUT

18

6637335

O-RING

19

6640585

O-RING

20

6637410

O-RING

21

6640562

VALVE ASY suction & safety

21

6640555

SLEEVE suction & safety

22

6643224

VALVE suction & safety

23

6640226

SEAL suction & safety

24

6643225

POPPET suction & safety

25

6643229

SPRING suction & safety

26

6643226

SCREW suction & safety

27

6642082

O-RING suction & safety

28

6643194

NUT suction & safety

29

6640221

SPRING suction & safety

30

6640556

PLUG suction & safety

31

6637417

O-RING suction & safety

32

6637410

O-RING suction & safety

33

6640567

VALVE ASSY safety

33

6643231

SLEEVE

34

6643225

POPPET

35

6643232

PISTON

36

6643227

SPRING

37

6643233

SCREW

38

6637115

NUT

39

6637335

O-RING

40

6640585

O-RING

41

6637410

O-RING
