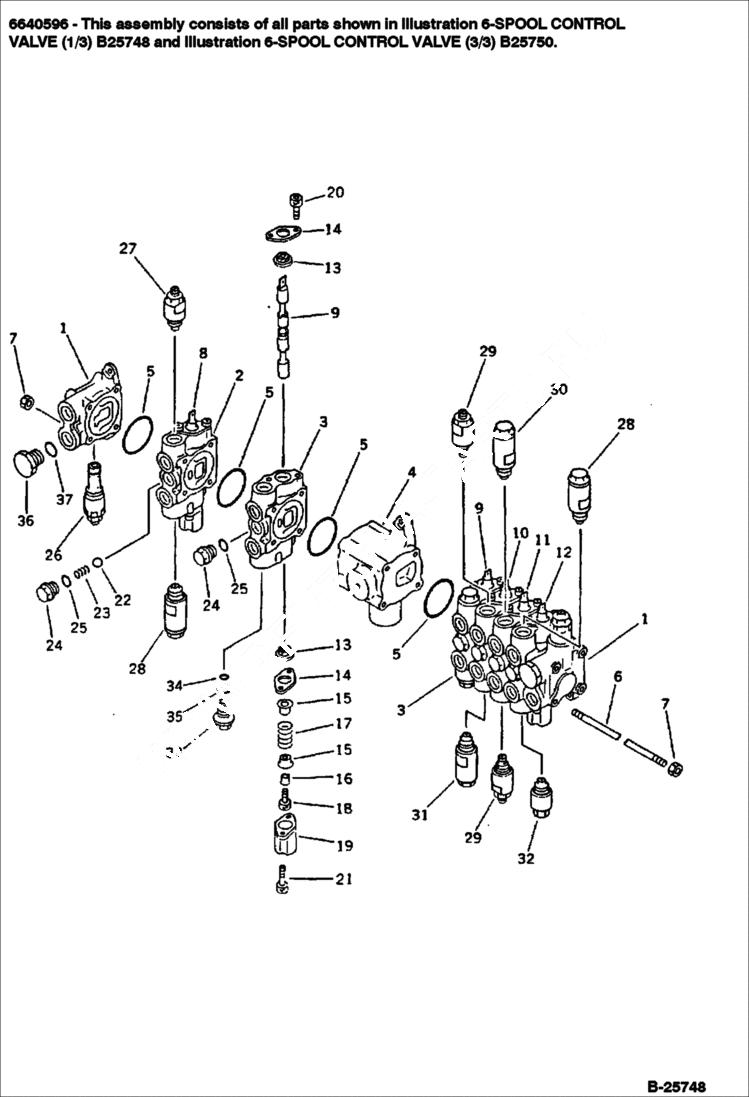

Запчасти Bobcat 116 6-SPOOL CONTROL VALVE (1/3) WORK EQUIPMENT CONTROL SYSTEM

1

6640596

VALVE ASSEMBLY See Illustration 6-SPOOL CONTROL VALVE (2/3)/ B25749 See Illustration 6-SPOOL CONTROL VALVE (2/3)/ B25749

1

6640593

HOUSING

1

6640571

BLOCK

2

6641911

BLOCK

3

6640572

BLOCK

4

6642023

VALVE ASS

5

6637375

O-RING

6

6640597

STUD

7

6637107

NUT

8

6641917

SPOOL arm

9

6641916

SPOOL travel

10

6641901

SPOOL bucket

11

6641900

SPOOL boom

12

6641858

SPOOL boom swing

13

6640575

SEAL

14

6640576

SHIELD

15

6640577

RETAINER

16

6640580

SPRING

17

6640581

SPRING

18

6637051

BOLT

19

6640579

COVER

20

6637049

BOLT

21

6637050

BOLT

22

6637318

BALL

23

6640583

SPRING

24

6640582

PLUG

25

6637415

O-RING

26

6640256

VALVE main relief

27

6640566

VALVE ASSY suction & safety

28

6640562

VALVE ASY safety

29

6640567

VALVE ASSY safety

30

6640563

VALVE ASSEMBLY suction & safety

31

6640559

VALVE ASY suction & safety

32

6640551

VALVE ASY suction

33

6640584

PLUG

34

6640585

O-RING

35

6637410

O-RING

36

6637437

PLUG

37

6637410

O-RING
