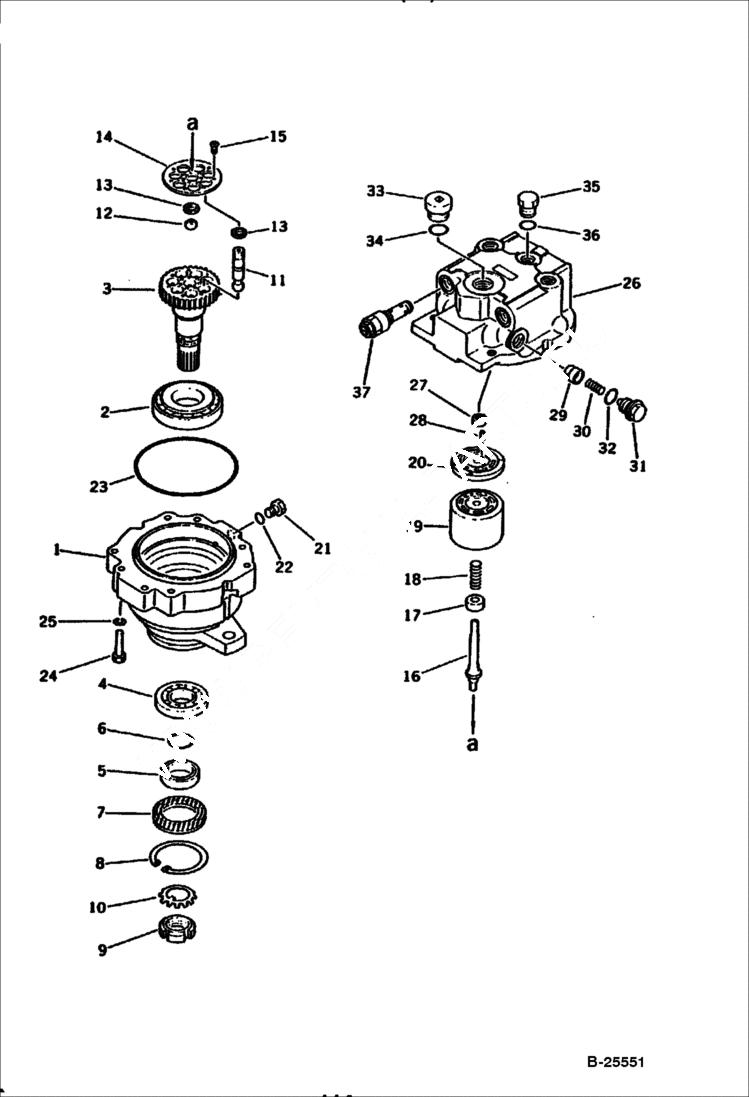

Запчасти Bobcat 100 SWING MOTOR (1/2) SWING AND CONTROL SYSTEM

1

6640335

MOTOR ASSY See Illustration SWING MOTOR (2/2)/ 4102 Assembly consists of all parts in Illustrations B25551 & 4102

1

6640346

HOUSING case - brake

2

6640372

BEARING

3

6640351

SHAFT drive

4

6640374

BEARING

5

6640375

RING

6

6637359

O-RING

7

6640377

SEAL, OIL

8

6637235

RING, SNAP

9

6637101

NUT

10

6637163

WASHER lock

11

6640341

PISTON

12

6640342

BALL center

13

6640343

RETAINER

14

6640344

RETAINER

15

6640345

SCREW

16

6640347

SHAFT center

17

6640340

RING

18

6640339

SPRING

19

6640338

BLOCK cylinder

20

6640353

SHIELD valve

21

6637435

PLUG

22

6637409

O-RING

23

6640350

RING

24

6636973

BOLT

25

6637135

WASHER

26

6640354

HOUSING

27

6640337

BEARING

28

6637174

PIN, DOWE

29

6640358

VALVE

30

6640360

SPRING

31

6640359

PLUG

32

6637418

O-RING

33

6642094

PLUG

34

6637419

O-RING

35

6637437

PLUG

36

6637417

O-RING

37

6640365

VALVE ASSY relief
