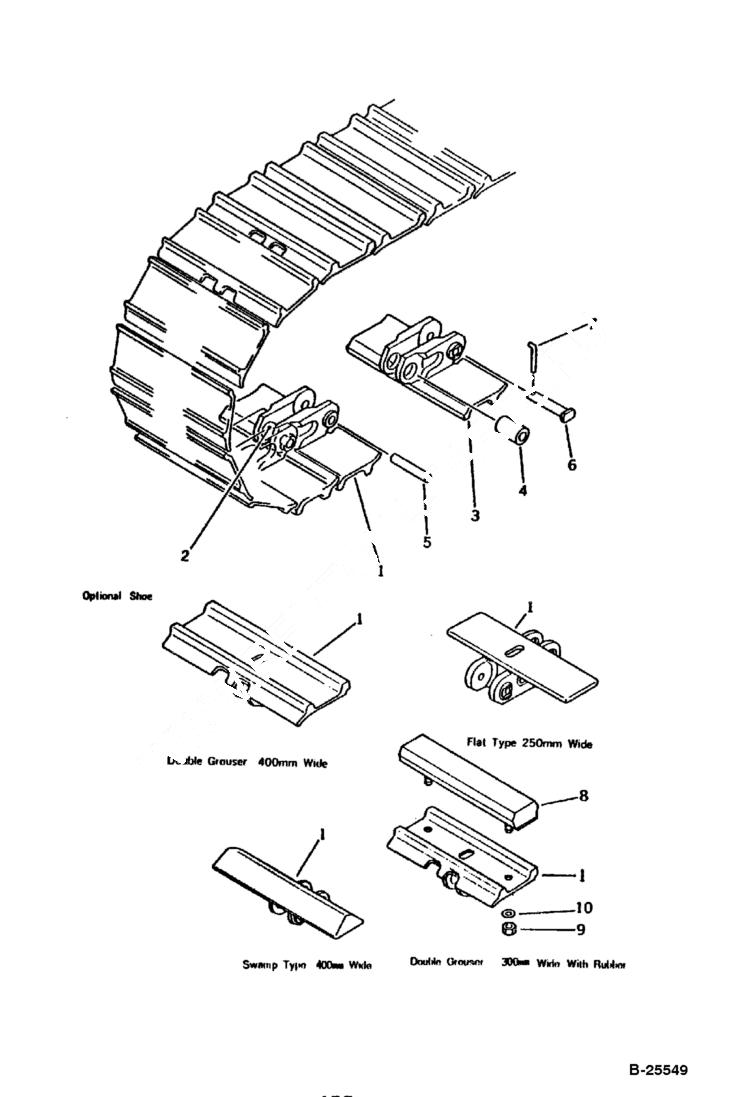

Запчасти Bobcat 100 TRACK SHOE STANDARD - DOUBLE GROUSER 300 mm wide UNDERCARRIAGE

1

6673179

TRACK SHOE ASSY

1

6673175

TRACK SHOE ASSY Komatsu S/N 7876-8668

1

6662953

TRACK ASY Komatsu S/N 6001-7875 - Was 6638681 - A

1

6640878

REG/SHOE Was 6670247 - A

1

SHOE ASSY, REGULAR Komatsu S/N 7876-8668 - Was 20S-32-00022

1

6640878

REG/SHOE Komatsu S/N 6001-7875

1

SHOE, REGULAR Komatsu S/N 6001-7875 - Was 20S-32-12110

1

SHOE, REGULAR Komatsu S/N 7876-8668 - Was 20S-32-21110

1

SHOE, REGULAR Komatsu S/N 8669- Was 20S-32-21111

2

6638684

BUSHING

3

6640879

MSTR/SHOE master - Was 6670248

3

SHOE ASSY, MASTER Komatsu S/N 7876-8668 - Was 20S-32-00032

3

6640879

MSTR/SHOE Komatsu S/N 6001-7875

3

SHOE, MASTER Komatsu S/N 6001-7875 - Was 20S-32-12150

3

SHOE, MASTER Komatsu S/N 7876-8668 - Was 20S-32-21150

3

SHOE, MASTER Komatsu S/N 8669- Was 20S-32-21151

4

6638684

BUSHING

5

6640880

PIN, REG

6

6638683

PIN master

7

6638685

PIN

8

6658435

CUSHION

9

6637109

NUT

10

6637158

WASHER
