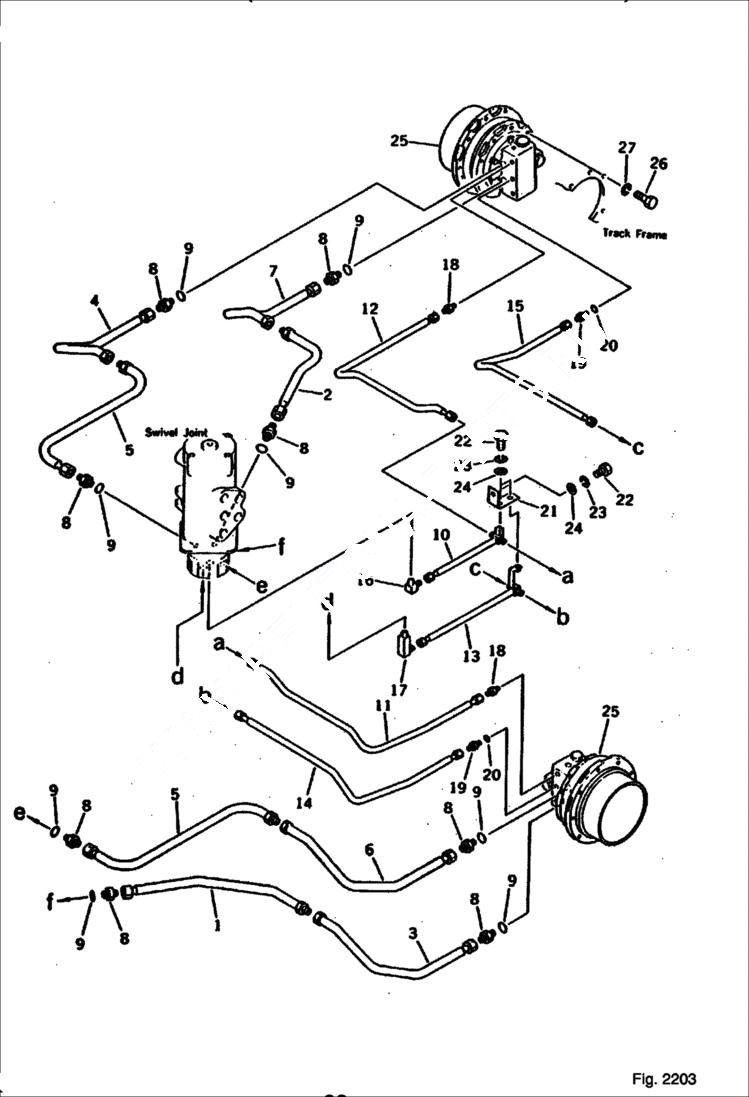

Запчасти Bobcat 100 HYDRAULIC PIPING (SWIVEL JOINT TO/FROM TRAVEL MOTOR) TRAVEL AND FINAL DRIVE

1

6638846

TUBE LH

2

6638848

TUBE RH

3

6638847

TUBE LH

4

6638849

TUBE RH

5

6638843

TUBE

6

6638844

TUBE LH

7

6638845

TUBE RH

8

6637581

NIPPLE

9

6637417

O-RING

10

6638852

TUBE

11

6638850

TUBE LH

12

6638851

TUBE RH

13

6638858

TUBE

14

6638856

TUBE LH

15

6638857

TUBE RH

16

6639131

ELBOW

17

6639892

ELBOW

18

6637888

NIPPLE

19

6639397

NIPPLE

20

6637414

O-RING

21

6638853

SHIELD

22

6636967

BOLT

23

6637135

WASHER

24

6637157

WASHER

25

6638812

MOTOR ASY travel

26

6636980

BOLT

27

6637136

WASHER
