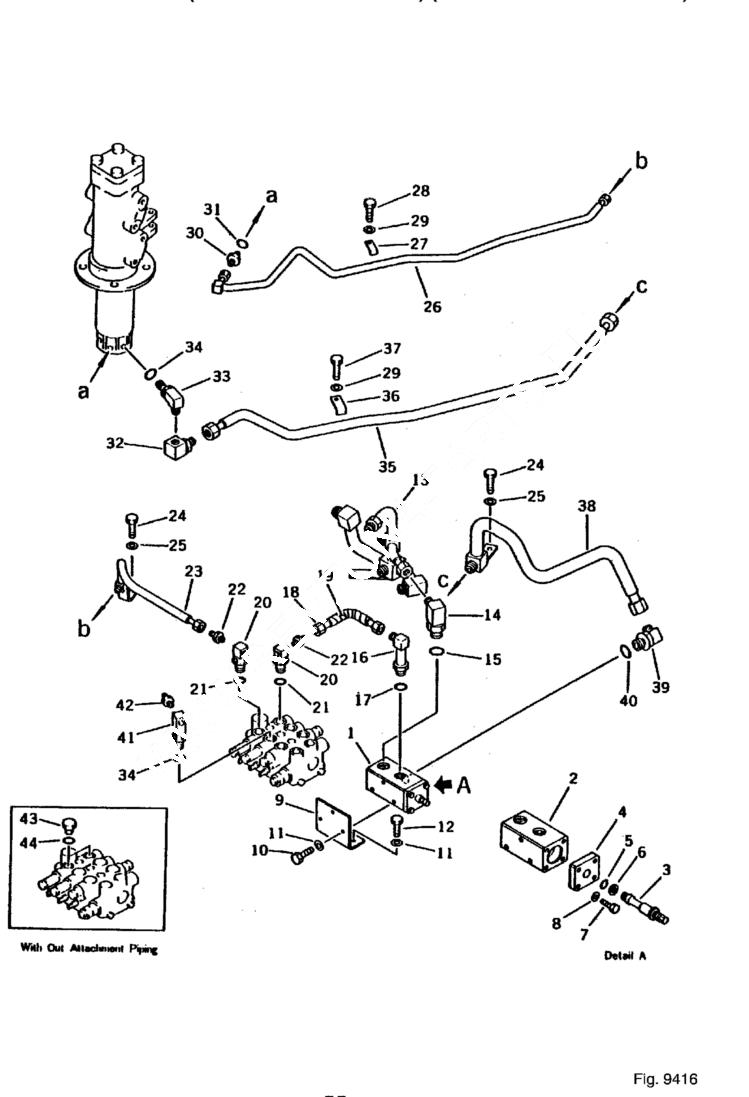

Запчасти Bobcat 100 HYDRAULIC PIPING (VALVE TO SWIVEL JOINT) (W/ATTACHMENT PIPING) TRAVEL AND FINAL DRIVE

1

6639635

VALVE ASSY 3-way

2

6646718

BODY

3

6646719

SPOOL

4

6646720

PLATE

5

6637372

O-RING

6

6642089

RING, BAC

7

6636958

BOLT

8

6646721

WASHER

9

6646722

BRACKET

10

6636966

BOLT

11

6637135

WASHER

12

6636968

BOLT

13

6638932

TUBE

14

6646723

ELB0W

15

6637411

O-RING

16

6638578

ELBOW

17

6637411

O-RING

18

6642098

HOSE

19

6639218

COVER

20

6646724

TEE

21

6637415

O-RING

22

6637888

NIPPLE

23

6638933

TUBE

24

6636966

BOLT

25

6637135

WASHER

26

6638934

TUBE

27

6638813

CLAMP

28

6636966

BOLT

29

6637135

WASHER

30

6638840

UNION

31

6637415

O-RING

32

6638841

ELBOW

33

ELBOW Was 20S-973-2570

34

6637415

O-RING

35

6638937

TUBE

36

6639090

CLAMP

37

6636967

BOLT

38

6638936

TUBE

39

6642856

ELBOW

40

6637418

O-RING

41

6646725

ELBOW

42

6637888

NIPPLE

43

6637436

PLUG W/O attachment piping

44

6637415

O-RING W/O attachment piping
