SWIVEL JOINT

Запчасти Bobcat 100 SWIVEL JOINT TRAVEL AND FINAL DRIVE

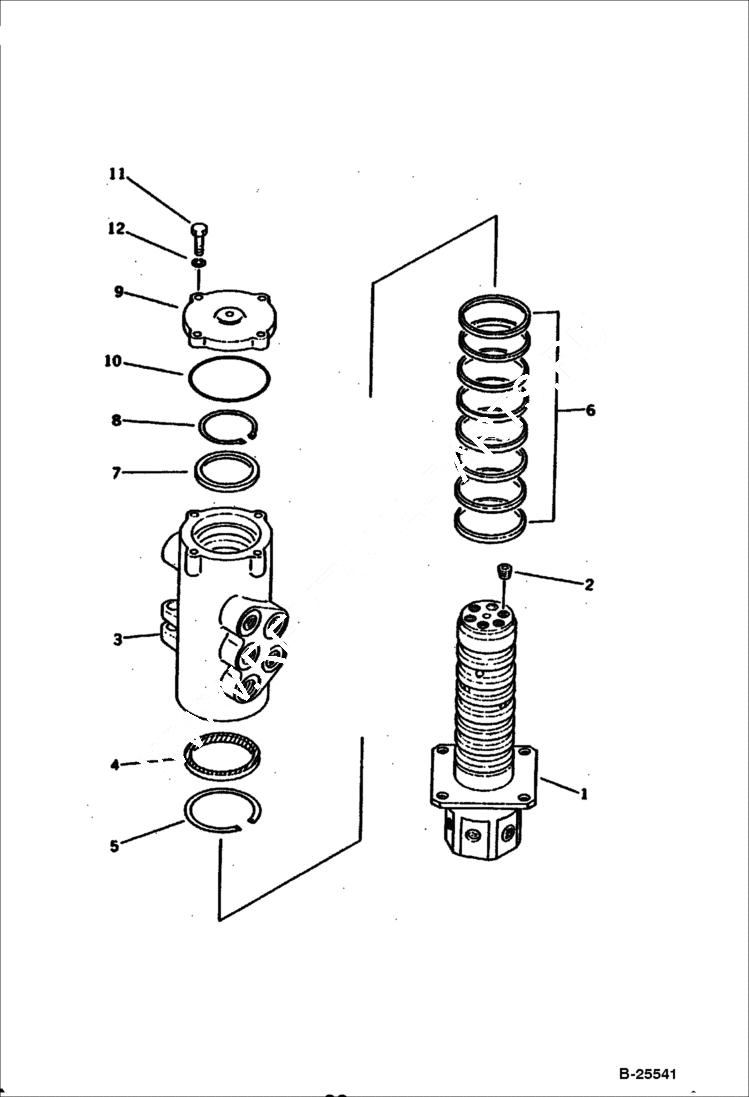

Схема запчастей Bobcat 100 - SWIVEL JOINT TRAVEL AND FINAL DRIVE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

SWIVEL JOINT ASSY Was 701-08-13101

1

6646051

SHAFT swivel

2

6640291

PLUG

3

6640285

ROTOR

4

6640290

SEAL, OIL

5

6637240

RING, SNAP

6

6640289

SEAL slipper

7

6640288

RING

8

6637227

RING, SNAP

9

6640287

COVER

10

6637350

O-RING

11

6636961

BOLT

12

6637134

WASHER
