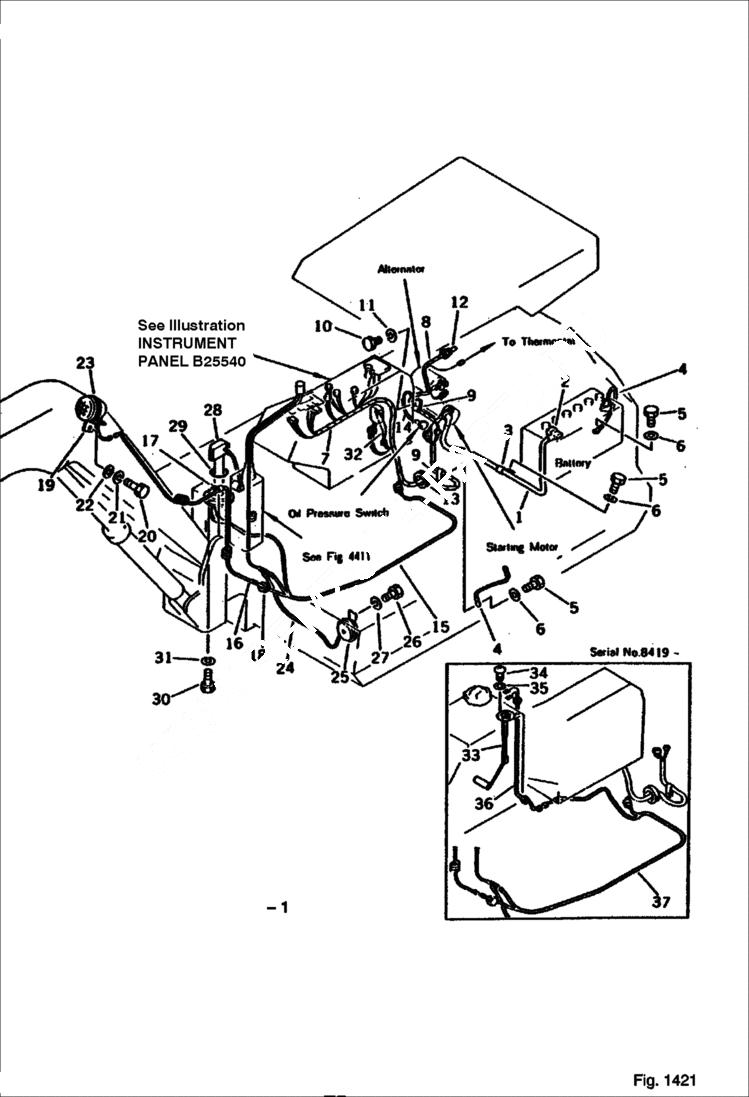

Запчасти Bobcat 100 ELECTRICAL SYSTEM ENGINE RELATED PARTS AND ELECTRICAL SYSTEM

1

6638657

WIRE

2

6638628

COVER

3

6637690

CLIP

4

6638545

WIRE

5

6636965

BOLT

6

6637150

WASHER

7

6638649

WIRE ASY

8

6638655

WIRE

9

6637688

CLIP

10

6636965

BOLT

11

6633715

SHIM

12

6637895

SENSOR water temp.

13

6637705

GROMMET

14

6638627

WIRE

15

6638651

WIRE ASY Komatsu S/N 6001-8418

16

6642776

WIRE

17

6637693

CLIP

18

6637700

GROMMET

19

6639026

BRACKET

20

6636967

BOLT

21

6637135

WASHER

22

6637157

WASHER

23

6637723

LAMP

23

6637722

BULB

23

6640842

LENS

24

6642795

WIRE

25

6637726

HORN

26

6636957

BOLT

27

6637134

WASHER

28

6638645

GAUGE fuel - Komatsu S/N 6001-8418

29

6637347

O-RING Komatsu S/N 6001-8418

30

6636965

BOLT Komatsu S/N 6001-8418

31

6637135

WASHER Komatsu S/N 6001-8418

32

6638654

WIRE

33

6638992

FLOAT Komatsu S/N 8419-

34

6637025

SCREW Komatsu S/N 8419-

35

6637125

WASHER Komatsu S/N 8419-

36

6638999

WIRE Komatsu S/N 8419-

37

6638995

WIRE Komatsu S/N 8419-
