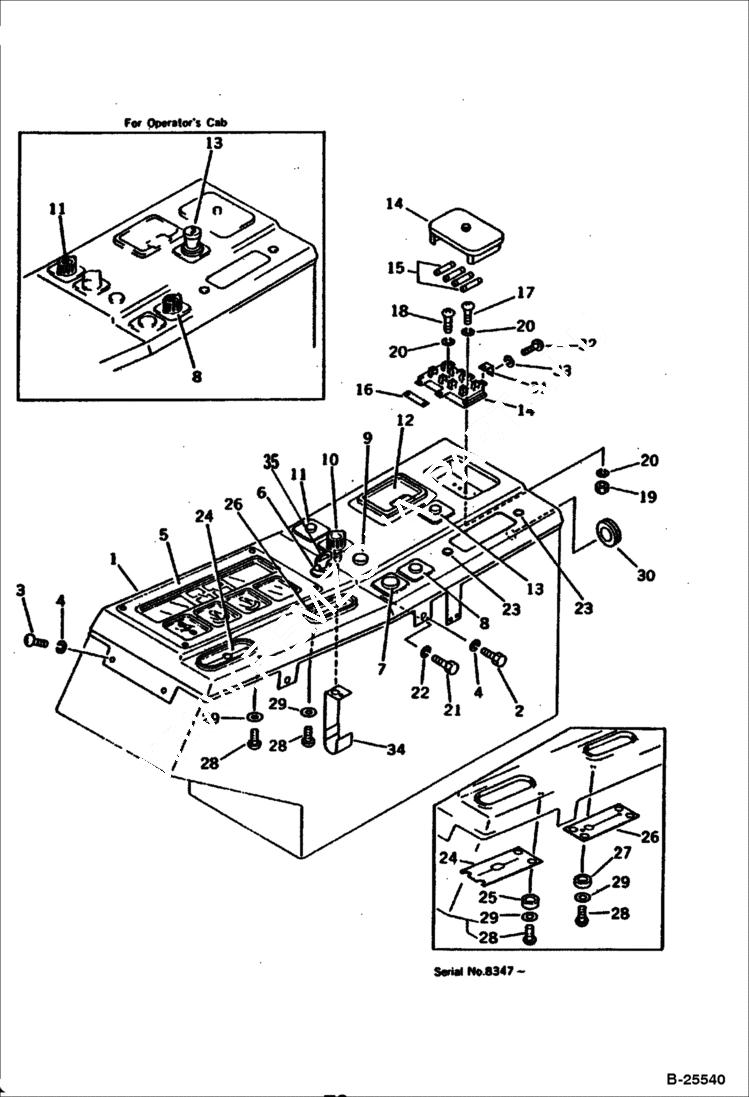

Запчасти Bobcat 100 INSTRUMENT PANEL ENGINE RELATED PARTS AND ELECTRICAL SYSTEM

1

6638647

PANEL for cab

1

6638646

PANEL for canopy

2

6636958

BOLT

3

6637043

SCREW

4

6637134

WASHER

5

6638644

GAUGE cluster

6

6637720

SWITCH starting

7

6637756

CAP

8

6637755

CAP for canopy

8

6639264

SWITCH heater - for cab

9

6637755

CAP

10

6639265

SWITCH lamp

11

6637755

CAP for canopy

11

6639266

SWITCH wiper - for cab

12

6638642

ASHTRAY

13

6637757

CAP for canopy

13

6638641

LIGHTER for cab

14

6638636

FUSE BOX

15

6637713

FUSE 20A

16

6637878

TERMINAL

17

6637035

SCREW

18

6637034

SCREW

19

6637105

NUT

20

6637126

WASHER

21

6636951

BOLT

22

6637133

WASHER

23

6637755

CAP

24

6638638

SHIELD 20S-06-21161, 20S-06-21690; Komatsu S/N 6001-8346

24

PLATE Komatsu 8347- Was 20S-06-21161

25

SPACER Komatsu 8347- Was 20S-06-21690

26

6638639

SHIELD 20S-06-21171, 20S-06-21690; Komatsu S/N 6001-8346

26

PLATE Komatsu 8347- Was 20S-06-21171

27

SPACER Komatsu 8347- Was 20S-06-21690

28

6637031

SCREW

29

6639901

WASHER

30

6637702

GROMMET

31

6638637

SHIELD

32

6637024

SCREW

33

6637125

WASHER

34

6638640

CLIP plate

35

6640722

KEY master
