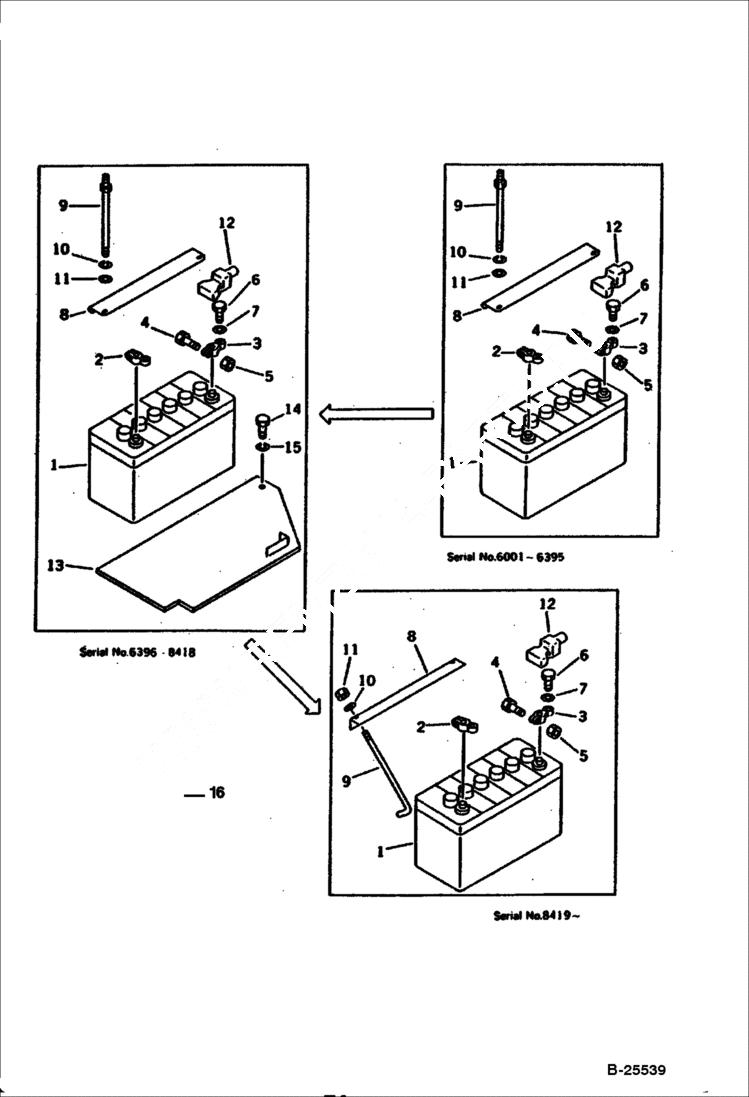

Запчасти Bobcat 100 BATTERY ENGINE RELATED PARTS AND ELECTRICAL SYSTEM

1

6637677

BATTERY 100AH, N100, 10E-06-11210, 6642797, 6642796, 01010-50816, 6637134 - Komatsu S/N 6001-6395

1

BATTERY, 12V 70AH, N70 Komatsu S/N 6396 & Abv. - Was 08000-02208

1

BATTERY (FOR COLD WEATHER) (OP) - Was 20T-06-21130

2

6640837

TERMINAL +

3

6640838

TERMINAL -

4

6636944

BOLT

5

6637107

NUT

6

6642013

BOLT

7

6640819

WASHER

8

6638624

RETAINER Komatsu S/N 6001-6395

8

6638624

RETAINER for cold weather - Komatsu S/N 6001-8418

8

6638624

RETAINER for cold weather - Komatsu S/N 8419-

8

6642797

HOLDER Komatsu S/N 6396-8418

8

6654229

HOLDER Komatsu S/N 8419-

9

6638625

ROD Komatsu S/N 6001-8418

9

6654230

ROD Komatsu S/N 8419-

10

6637134

WASHER Komatsu S/N 6001-8418

10

WASHER Komatsu 8419- Was 01643-30813

11

6637146

WASHER Komatsu S/N 6001-8418

11

6637107

NUT Komatsu S/N 8419-

12

6637711

CAP

13

6642796

BRACKET Komatsu S/N 6396-8418

14

6636957

BOLT Komatsu S/N 6396-8418

15

6637134

WASHER Komatsu S/N 6396-8418

16

6643122

PLATE, CA caution (for cold weather) (OP) not shown
