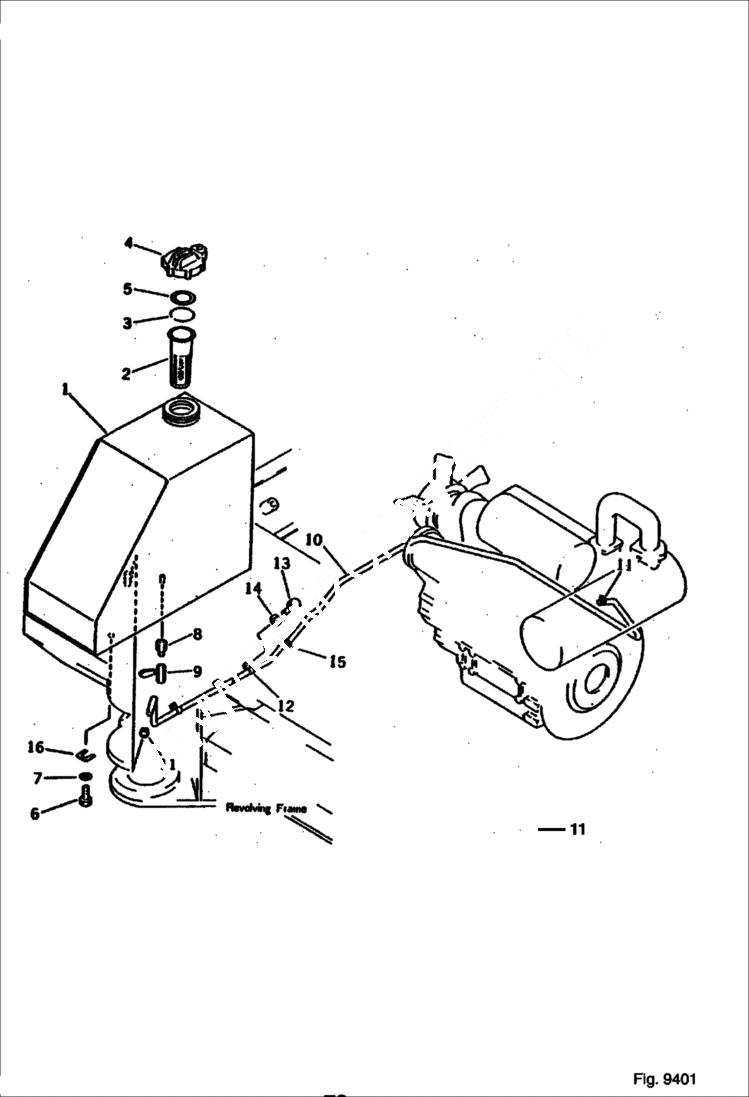

Запчасти Bobcat 100 FUEL TANK AND PIPING ENGINE RELATED PARTS AND ELECTRICAL SYSTEM

1

6642792

TANK ASSY

1

6638623

TANK

2

6637474

SCREEN

3

6637475

RING, SNAP

4

6637483

CAP

5

6637471

GASKET

6

6636980

BOLT

7

6637139

WASHER

8

6637848

NIPPLE

9

6637650

VALVE

10

6638622

HOSE

11

6637620

CLAMP

12

6637690

CLIP

13

6636965

BOLT

14

6637135

WASHER

15

6637702

GROMMET

16

6638543

SHIM
