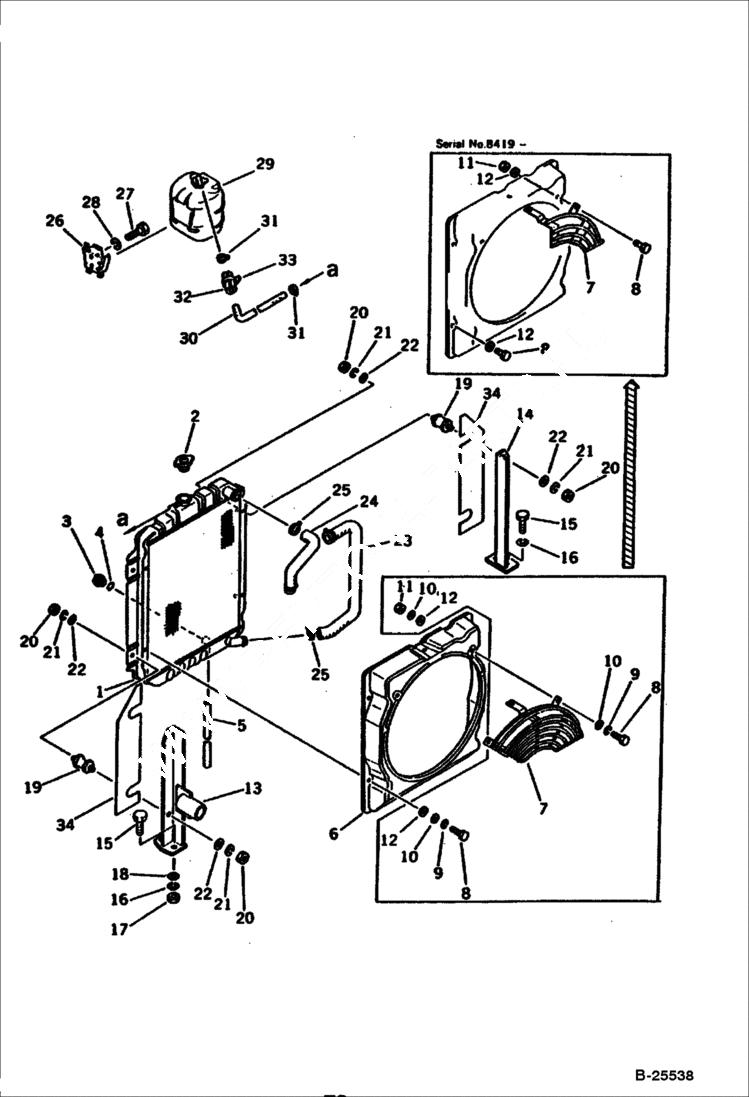

Запчасти Bobcat 100 RADIATOR AND PIPING ENGINE RELATED PARTS AND ELECTRICAL SYSTEM

1

6638615

RADIATOR

1

6638609

CORE ASY

1

OIL COOLER See Illustration HYDRAULIC BREAKER/ B25584 - for hydraulic breaker

2

6638610

CAP

3

6638219

COCK plug

4

6637333

O-RING

5

6642104

EYE JOINT tube

6

6638616

SHIELD

7

6638617

NET, WIRE Komatsu S/N 6001-8418

7

NET, WIRE Komatsu 8419 & Abv. - Was 20S-03-21121

8

6636958

BOLT Komatsu S/N 6001-8418

8

6637080

BOLT Komatsu S/N 8419-

9

6637134

WASHER Komatsu S/N 6001-8418

10

6637156

WASHER Komatsu S/N 6001-8418

11

6642032

NUT Komatsu S/N 6001-8418 - Was 6637107 - A

11

6642032

NUT Komatsu S/N 8419 & Abv.

12

6648806

BAND Komatsu S/N 6001-8418

12

6648806

BAND Komatsu S/N 8419-

13

6638619

BRACKET LH

14

6638620

BRACKET RH

15

6636967

BOLT

16

6637135

WASHER

17

6637108

NUT

18

6637157

WASHER

19

6638612

CUSHION

20

6637108

NUT

21

6637135

WASHER

22

6637157

WASHER

23

6638613

HOSE

24

6638614

HOSE

25

6637626

CLAMP

26

6639898

BRACKET

27

6636953

BOLT

28

6637133

WASHER

29

6639897

TANK

30

6638618

HOSE

31

6637620

CLAMP

32

6639070

BUSHING

33

6637682

BAND

34

6638621

SEAT
