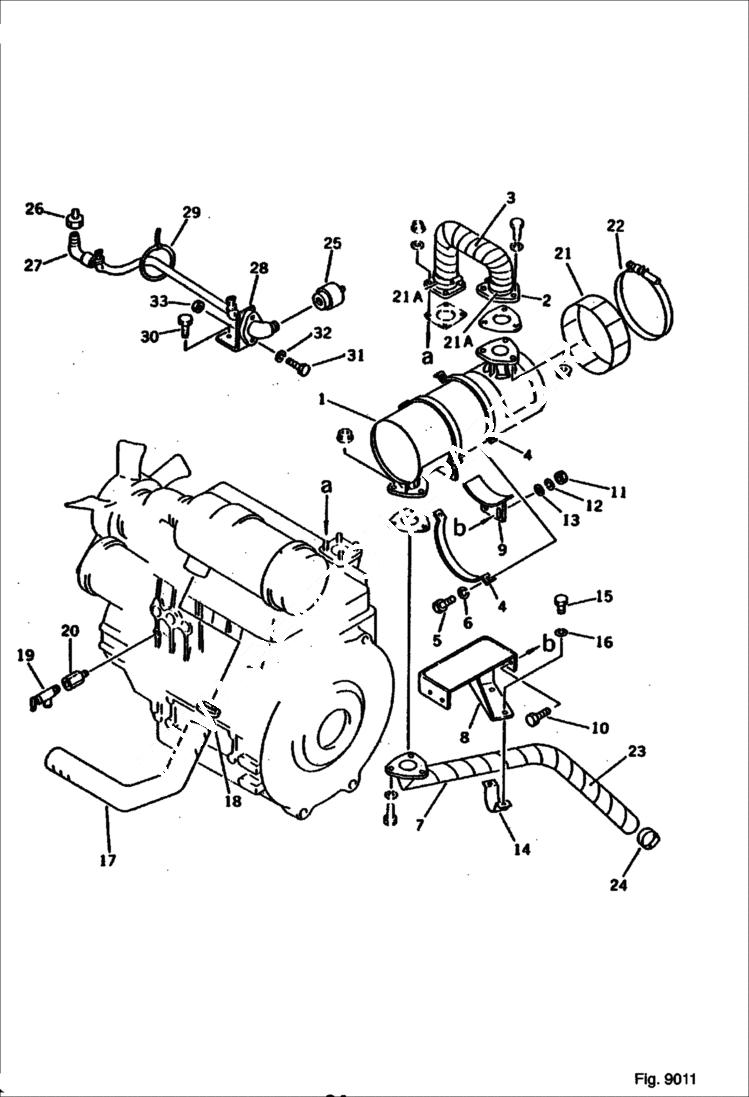

Запчасти Bobcat 100 ENGINE RELATED PARTS ENGINE RELATED PARTS AND ELECTRICAL SYSTEM

1

6638522

MUFFLER

2

6638523

BAND

3

6638601

TAPE

4

6638527

CLAMP

5

6636960

BOLT

6

6637134

WASHER

7

6638607

PIPE exhaust

8

6638526

BRACKET

9

6638524

BRACKET

10

6636967

BOLT

11

6637108

NUT

12

6637135

WASHER

13

6637157

WASHER

14

6638525

CLAMP

15

6636966

BOLT

16

6637135

WASHER

17

6638608

HOSE

18

6637629

CLAMP

19

6639238

VALVE

20

6638600

NIPPLE

21

6648816

CLAMP

21

6642789

SHAFT baffle

22

6642114

CLAMP

23

6638962

TAPE

24

6637627

CLAMP

25

6637730

GAUGE, DU dust indicator

26

6638602

NIPPLE

27

6637731

HOSE

28

6638603

BRACKET

29

6637682

BAND

30

6636958

BOLT

31

6636954

BOLT

32

6637133

WASHER

33

6637106

NUT
