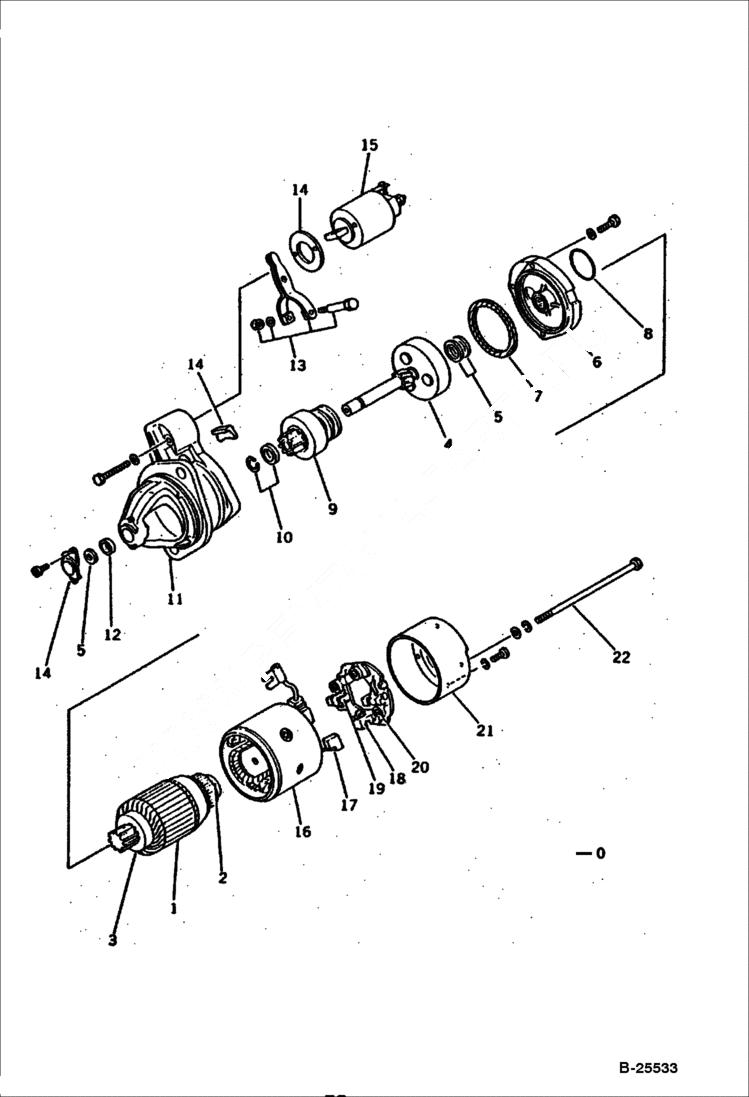

Запчасти Bobcat 100 STARTING MOTOR ELECTRICAL SYSTEM

0

6640933

MTR, STG

1

6641780

ARMATURE

2

6641783

BEARING

3

6641785

BEARING

4

6641781

SHAFT ASSY

5

THRUST WASHER ASSY Was YMX-21302115

6

6646195

CTR BRG

7

6641009

SEAL, OIL

8

O-RING Was YMX-21302402

9

6636233

GEAR ASSY

10

6641782

STOPPER A

11

6641792

GEAR CASE

12

6636236

BUSHING

13

6641784

LEVER ASSY

14

6641786

COVER, DU

15

6641010

SWITCH,MA magnetic

16

6641793

COIL ASSY

17

6641794

BRUSH

18

6641791

HOLDER

19

6641013

BRUSH

20

6641790

SPRING

21

6641787

COVER rear

22

6641789

BOLT
