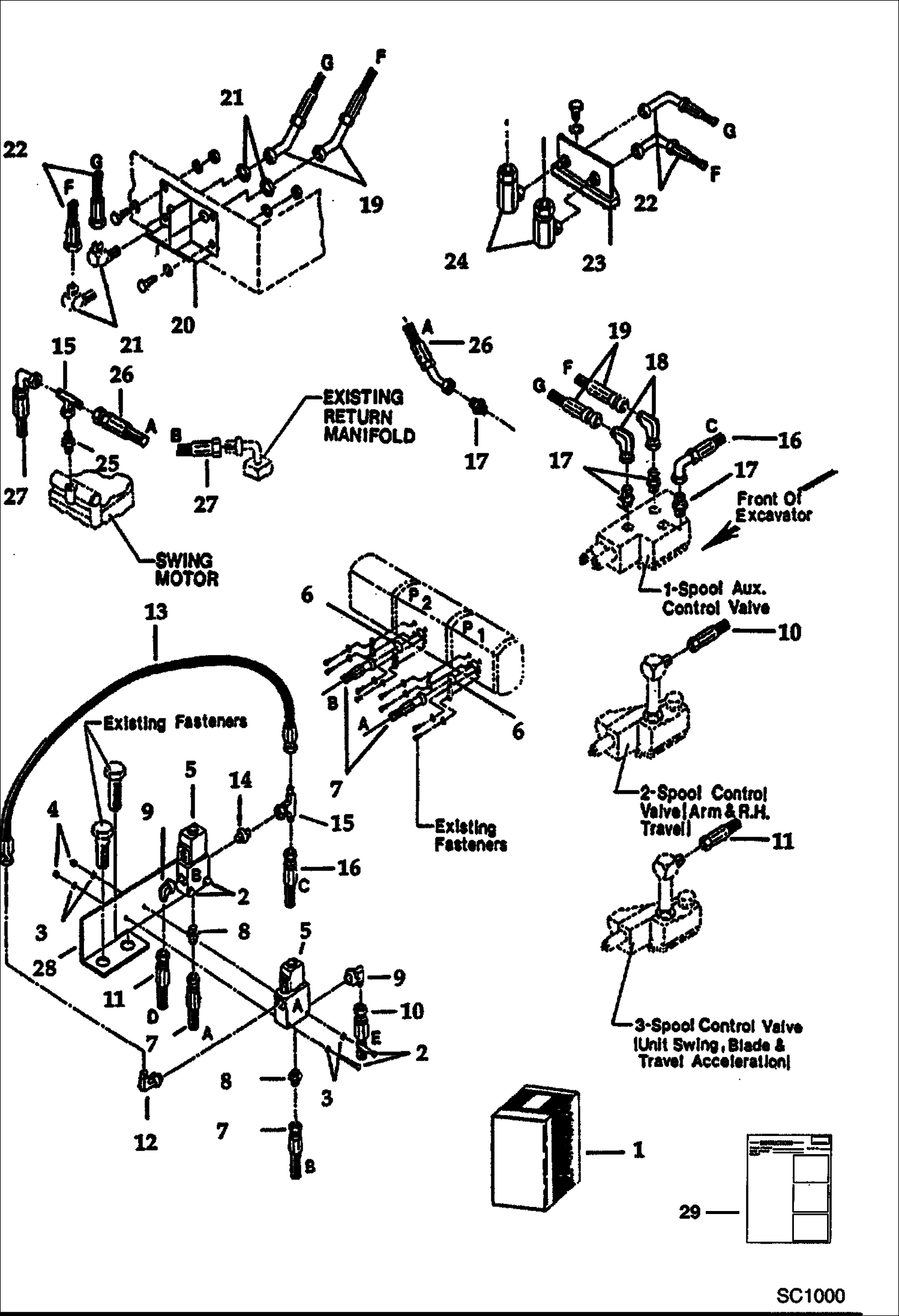

Запчасти Bobcat 100 HYDRAULIC BREAKER (1250X & 2500) (Hydraulic Circuitry) STANLEY KITS

1

KIT See Illustration HYDRAULIC BREAKER/ SC1000 See Illustration HYDRAULIC BREAKER/ SC1004 See Illustration HYDRAULIC BREAKER/ SC1003 See Illustration HYDRAULIC BREAKER/ SC1001 NLA - Order all part num

2

17C432

BOLT

3

25E14

WSHR

4

85D14

NUT

5

6651355

VALVE

6

O-RING NLA - Was 6651356 - A

7

6651357

HOSE

8

6651358

ADAPTER

9

6650560

ELBOW

10

6651359

HOSE

11

6651360

HOSE

12

6651361

ELBOW

13

6651362

HOSE

14

6651363

ADAPTER

15

6651364

TEE

16

6651365

HOSE

17

6651366

ADAPTER

18

ELBOW NLA - Was 6651734 - A

19

6651368

HOSE

20

6651369

BRACKET

21

6651370

ELBOW

22

6651371

HOSE

23

6651372

BRACKET

24

6651373

ELBOW

25

6651374

ADAPTER

26

6651375

HOSE

27

6651376

HOSE

28

6651354

BRACKET

29

INSTRUCTIONS Packed with Kit
