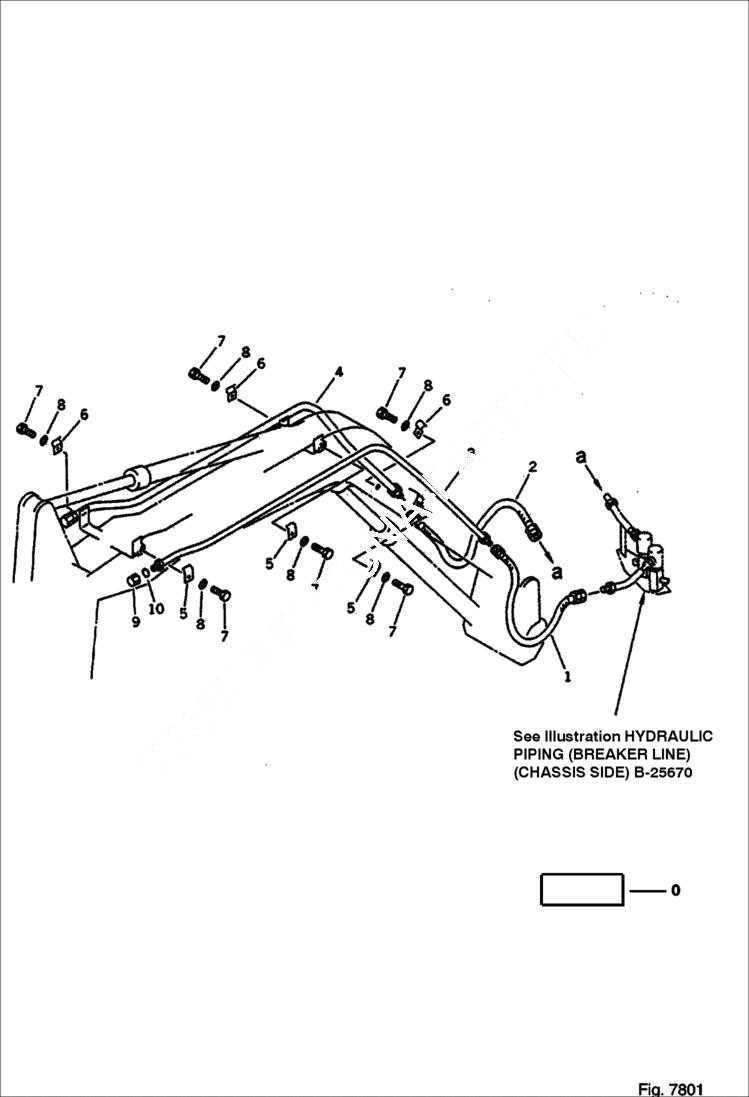

Запчасти Bobcat 100 HYDRAULIC PIPING (BREAKER LINE) WORK EQUIPMENT

0

BOOM PIPING GROUP (for breaker) - Was 20S-970-X240

1

HOSE Was 07086-40509

2

HOSE Was 07103-50609

3

TUBE Was 20S-970-3580

4

TUBE Was 20S-970-3590

5

6671137

CLAMP

6

CLAMP Was 20S-970-3650

7

6636967

BOLT

8

6637157

WASHER

9

PLUG Was 20S-970-3641

10

O-RING Was 02890-01023
