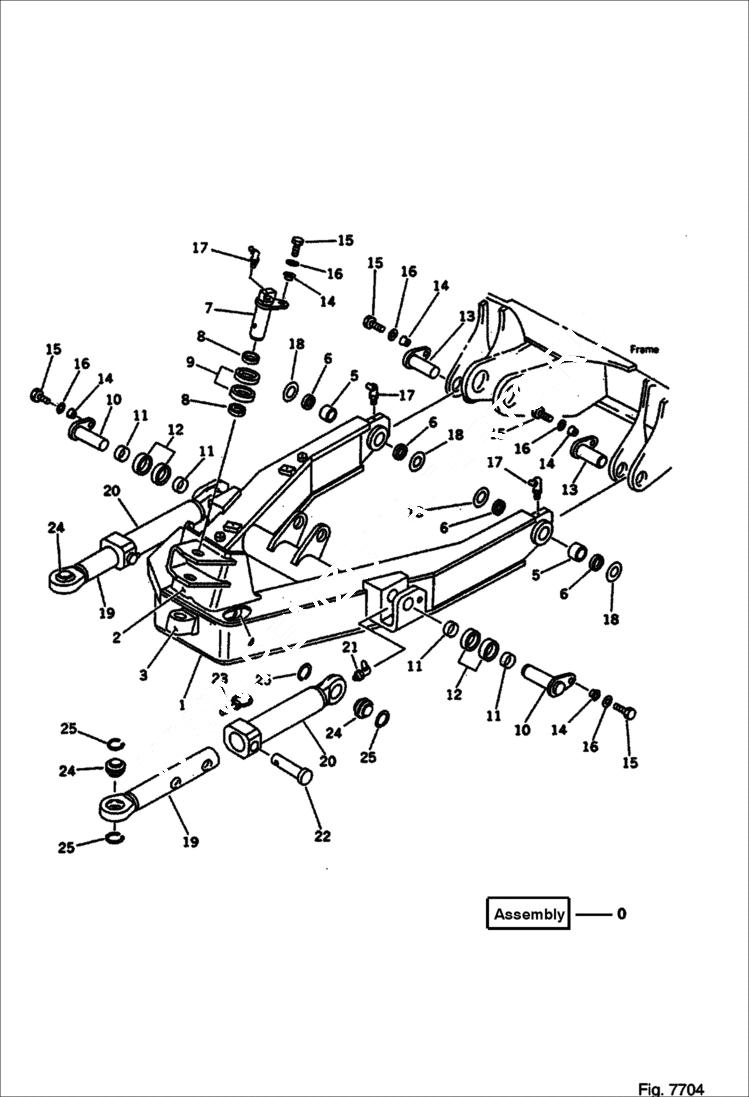

Запчасти Bobcat 100 BLADE FRAME (FOR POWER TILT MECH. ANGLE DOZER) Komatsu S/N 13025 & Abv. WORK EQUIPMENT

0

FRAME ASS'Y Komatsu S/N 13025 & Abv. - Was 20S-910-0010

1

FRAME Komatsu S/N 13025 & Abv.

2

BRACKET (welded) - Komatsu S/N 13025 & Abv. - Was 20S-910-3220

3

PIN (welded) - Komatsu S/N 13025 & Abv. - Was 101-71-12140

4

COLLAR (welded) - Komatsu S/N 13025 & Abv. - Was 101-71-12150

5

6637526

BUSHING Komatsu S/N 13025 & Abv.

6

6637532

SEAL, DUST Komatsu S/N 13025 & Abv.

7

PIN Komatsu S/N 13025 & Abv. - Was 20U-910-1231

8

COLLAR Komatsu S/N 13025 & Abv. - Was 20U-910-1280

9

BUSHING Komatsu S/N 13025 & Abv. - Was 20U-910-1290

10

PIN Komatsu S/N 13025 & Abv. - Was 20U-910-1241

11

COLLAR Komatsu S/N 13025 & Abv. - Was 104-72-21960

12

BUSHING Komatsu S/N 13025 & Abv. - Was 104-72-21990

13

PIN Komatsu S/N 13025 & Abv. - Was 20S-71-31221

14

SPACER Komatsu S/N 13025 & Abv. - Was 20S-70-31180

15

6636980

BOLT Komatsu S/N 13025 & Abv.

16

6637158

WASHER Komatsu S/N 13025 & Abv.

17

6637431

FITTING Komatsu S/N 13025 & Abv.

18

6638598

SPACER 1.0mm - Komatsu S/N 13025 & Abv.

19

ROD ASS'Y Komatsu S/N 13025 & Abv. - Was 20U-910-1310

20

BRACE Komatsu S/N 13025 & Abv. - Was 20U-910-1330

21

6637432

FITTING Komatsu S/N 13025 & Abv.

22

PIN Komatsu S/N 13025 & Abv. - Was 20U-190-1351

23

PIN, LINCH Komatsu S/N 13025 & Abv. - Was 421-46-12740

24

BEARING Komatsu S/N 13025 & Abv. - Was 104-72-21920

25

RING, SNAP Komatsu S/N 13025 & Abv. - Was 04067-00055
