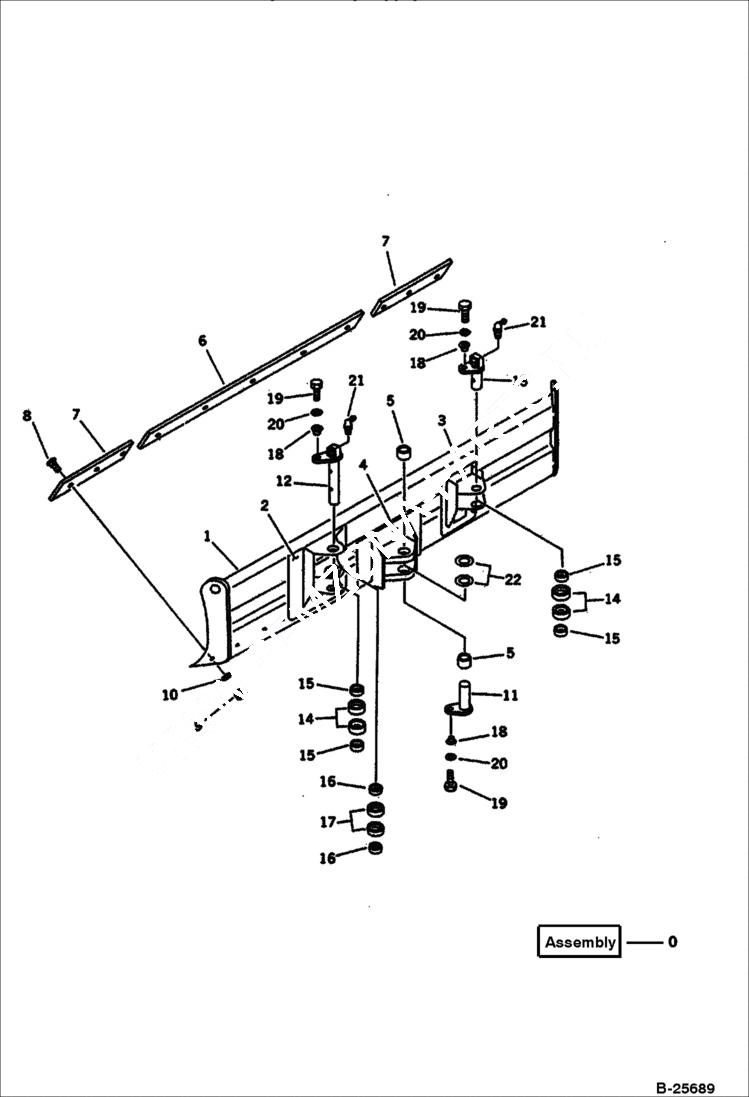

Запчасти Bobcat 100 BLADE (FOR POWER TILT MECH. ANGLE DOZER) Komatsu S/N 13025 & Abv. WORK EQUIPMENT

0

FRAME ASS'Y Komatsu S/N 13025 & Abv. - Was 20S-910-0020

1

BLADE Komatsu S/N 13025 & Abv.

2

BRACKET, L.H. (welded) - Komatsu S/N 13025 & Abv. - Was 20S-910-3120

3

BRACKET, R.H. (welded) - Komatsu S/N 13025 & Abv. - Was 20U-910-1141

4

BRACKET, CENTER (welded) - Komatsu S/N 13025 & Abv. - Was 20U-910-1151

5

BUSHING Komatsu S/N 13025 & Abv. - Was 20U-910-1190

6

EDGE Komatsu S/N 13025 & Abv. - Was 20S-910-3130

7

EDGE Komatsu S/N 13025 & Abv. - Was 20U-910-1980

8

6642047

BOLT Komatsu S/N 13025 & Abv.

9

6642048

NUT Komatsu S/N 13025 & Abv.

10

6637159

WASHER Komatsu S/N 13025 & Abv.

11

PIN Komatsu S/N 13025 & Abv. - Was 20U-910-1160

12

PIN Komatsu S/N 13025 & Abv. - Was 20S-910-3230

13

PIN Komatsu S/N 13025 & Abv. - Was 20U-910-1181

14

BUSHING Komatsu S/N 13025 & Abv. - Was 20U-910-1360

15

COLLAR Komatsu S/N 13025 & Abv. - Was 20U-910-1370

16

COLLAR Komatsu S/N 13025 & Abv. - Was 20U-910-1280

17

BUSHING Komatsu S/N 13025 & Abv. - Was 20U-910-1290

18

SPACER Komatsu S/N 13025 & Abv. - Was 20S-70-31180

19

6636980

BOLT Komatsu S/N 13025 & Abv.

20

6637158

WASHER Komatsu S/N 13025 & Abv.

21

6637431

FITTING Komatsu S/N 13025 & Abv.

22

6638598

SPACER 1.0mm - Komatsu S/N 13025 & Abv.
