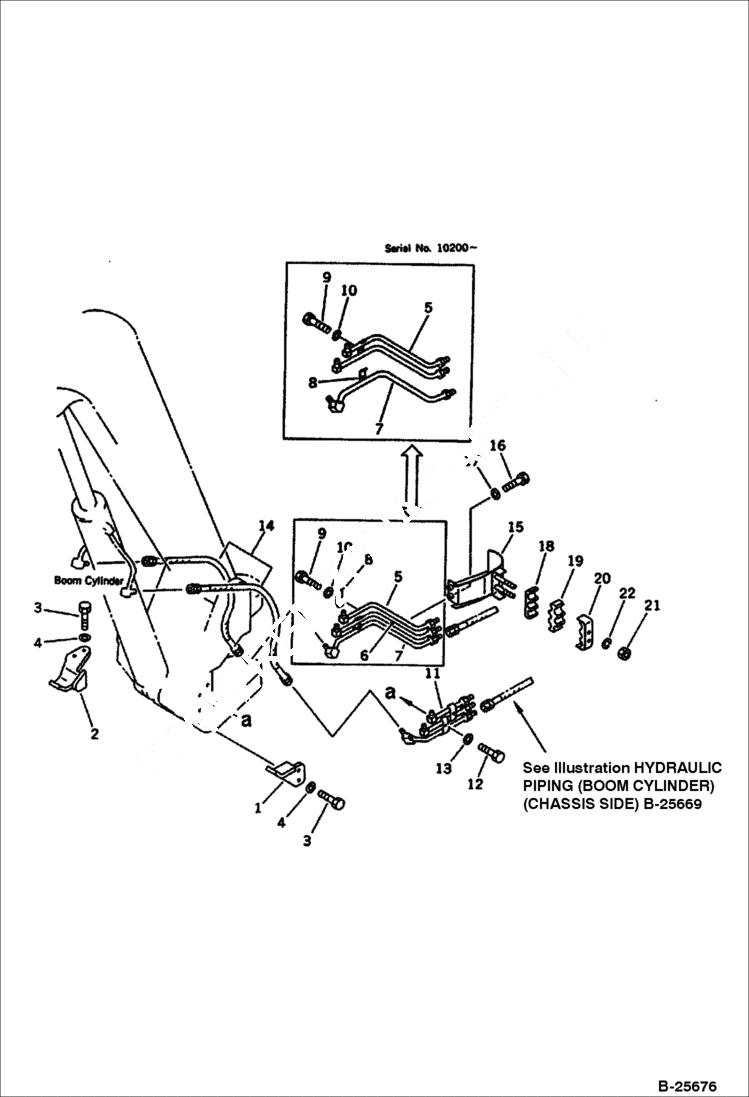

Запчасти Bobcat 100 HYDRAULIC PIPING (BOOM CYLINDER LINE) WORK EQUIPMENT

1

GUARD, L.H. Was 20S-70-31650

2

GUARD, R.H. Wsa 20S-70-31660

3

6636980

BOLT

4

6637158

WASHER

5

6652474

TUBE Komatsu S/N 10200 & Abv.

5

TUBE Komatsu S/N 10001-10199 - Was 20S-62-33160

6

TUBE Komatsu S/N 10001-10199 - Was 20S-62-33170

7

6659613

TUBE

8

CLAMP Komatsu S/N 10200 & Abv. - Was 20S-62-33130

8

CLAMP Komatsu S/N 10001-10199 - Was 20S-62-33130

9

6636969

BOLT

10

6637157

WASHER

11

6651207

TUBE

12

6636969

BOLT

13

6637157

WASHER

14

6649177

HOSE Komatsu S/N 12485 & Abv.

14

HOSE Komatsu S/N 10001-12484 - Was 20S-62-33150

15

BRACKET Was 20S-62-33210

16

6636969

BOLT

17

6637157

WASHER

18

RUBBER Komatsu S/N 12485 & Abv. - Was 20S-62-33270

18

RUBBER Komatsu S/N 10001-12484 - Was 20S-62-33230

19

RUBBER Komatsu S/N 12485 & Abv. - Was 20S-62-33280

19

RUBBER Komatsu S/N 10001-12484 - Was 20S-62-33240

20

CLAMP Komatsu S/N 12485 & Abv. - Was 20S-62-33290

20

CLAMP Komatsu S/N 10001-13024 - Was 20S-62-33260

21

NUT Was 01580-10806

22

6637134

WASHER
