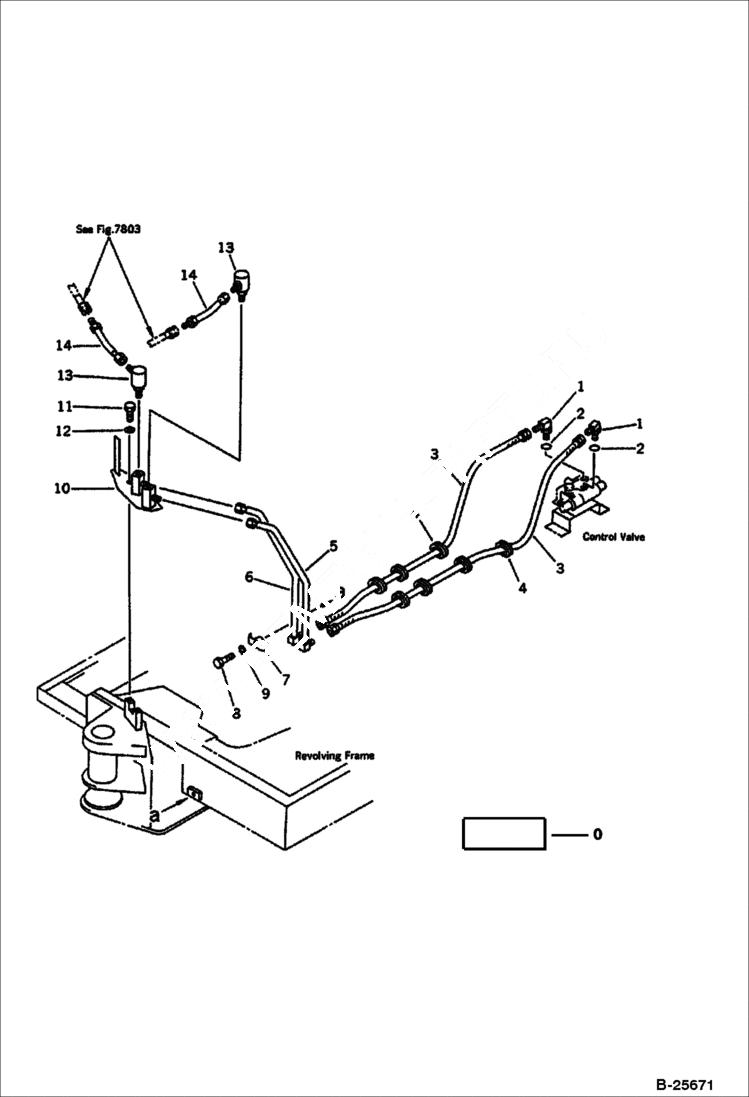

Запчасти Bobcat 100 HYDRAULIC PIPING (ATTACHMENT LINE) (CHASSIS SIDE) WORK EQUIPMENT CONTROL SYSTEM

0

PIPING GROUP, ATTACHMENT Was 20S-973-X160

0

PIPING GROUP, SWIVEL JOINT Was 20S-973-X170

1

6638580

ELBOW

2

6637415

O-RING

3

HOSE Was 07086-00313

4

GROMMET Was 175-911-4160

5

TUBE Was 20S-973-3310

6

TUBE Was 20S-973-3320

7

CLAMP Was 20S-62-33130

8

6636970

BOLT

9

6637157

WASHER

10

BRACKET Was 20S-973-3330

11

6636981

BOLT

12

6637158

WASHER

13

JOINT Was 07129-10300

14

TUBE Was 20S-973-3340
