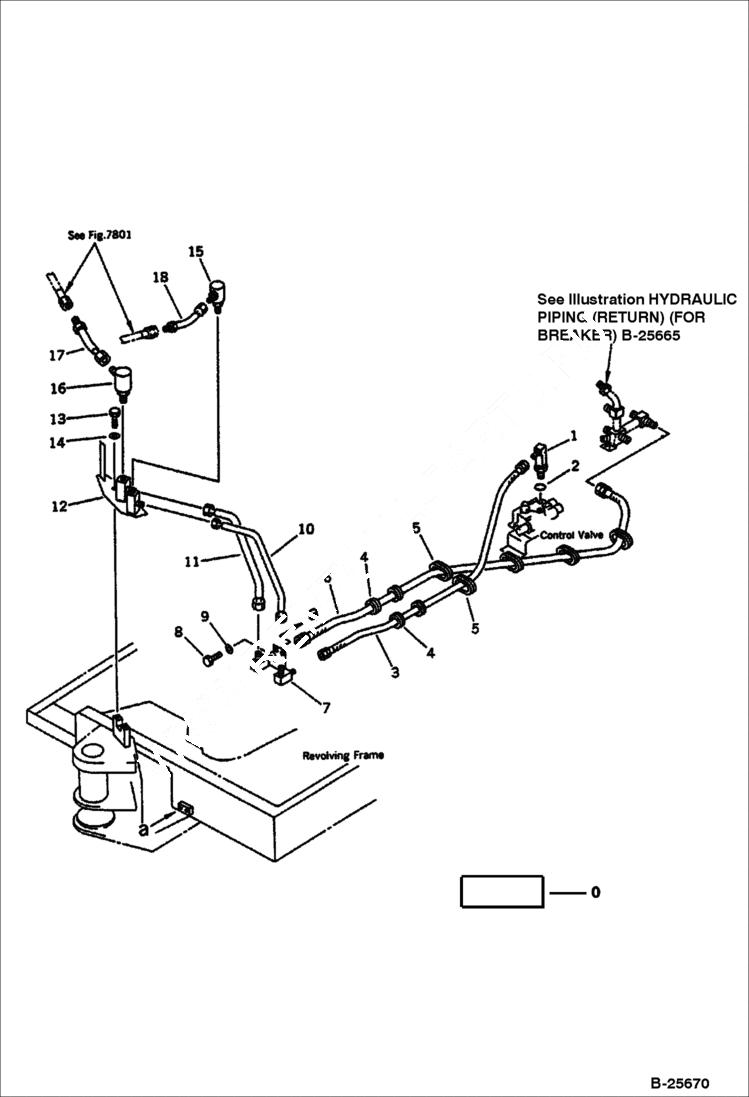

Запчасти Bobcat 100 HYDRAULIC PIPING (BREAKER LINE) (CHASSIS SIDE) WORK EQUIPMENT CONTROL SYSTEM

0

PIPING GROUP, BREAKER Was 20S-970-X220

0

PIPING GROUP, SWIVEL JOINT Was 20S-970-X230

1

ELBOW Was 20S-970-3510

2

6637417

O-RING

3

HOSE Was 07086-00511

4

6637703

GROMMET

5

6637891

GROMMET

6

HOSE Was 07102-20614

7

BRACKET Was 20S-970-3520

8

6636967

BOLT

9

6637157

WASHER

10

TUBE Was 20S-970-3530

11

TUBE Was 20S-970-3540

12

BRACKET Was 20S-970-3550

13

6636981

BOLT

14

6637158

WASHER

15

JOINT Was 07129-10500

16

JOINT Was 07129-10600

17

TUBE Was 20S-970-3560

18

TUBE Was 20S-970-3570
