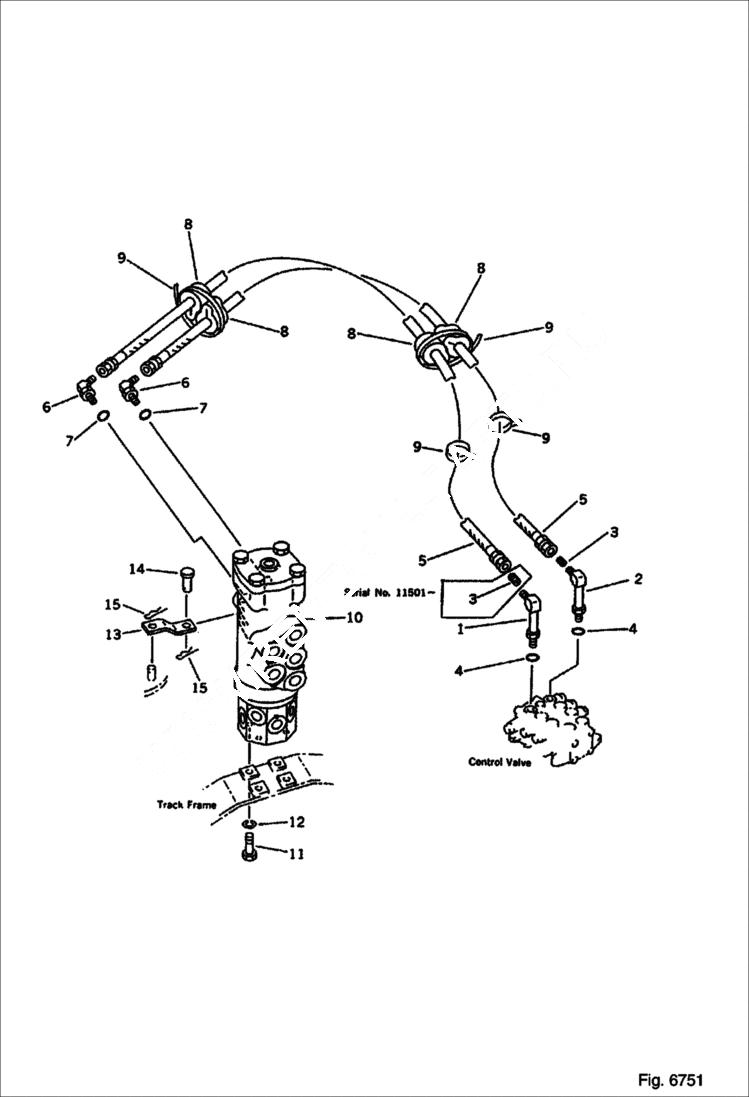

Запчасти Bobcat 100 HYDRAULIC PIPING (BLADE CYLINDER LINE) (CHASSIS SIDE) WORK EQUIPMENT CONTROL SYSTEM

1

ELBOW Komatsu S/N 11501 & Abv. - Was 20S-62-31560

1

6639571

ELBOW Komatsu S/N 10001-11500

2

ELBOW Was 20S-62-31560

3

PLUG Komatsu S/N 11501 & Abv. - Was 20S-62-31440

3

PLUG Komatsu S/N 10001-11500 - Was 20S-62-31580

4

6637415

O-RING

5

HOSE Komatsu S/N 12485 & Abv. - Was 20T-62-66590

5

6639582

HOSE Komatsu S/N 10001-12484

6

6638590

ELBOW

7

6637417

O-RING

8

6643046

BUSHING

9

6637683

BAND

10

SWIVEL JOINT ASS'Y See Illustration SWIVEL JOINT/ B25658 Was 703-07-13120

11

6636981

BOLT

12

6637158

WASHER

13

6642942

PLATE

14

6639080

PIN

15

6637215

PIN
