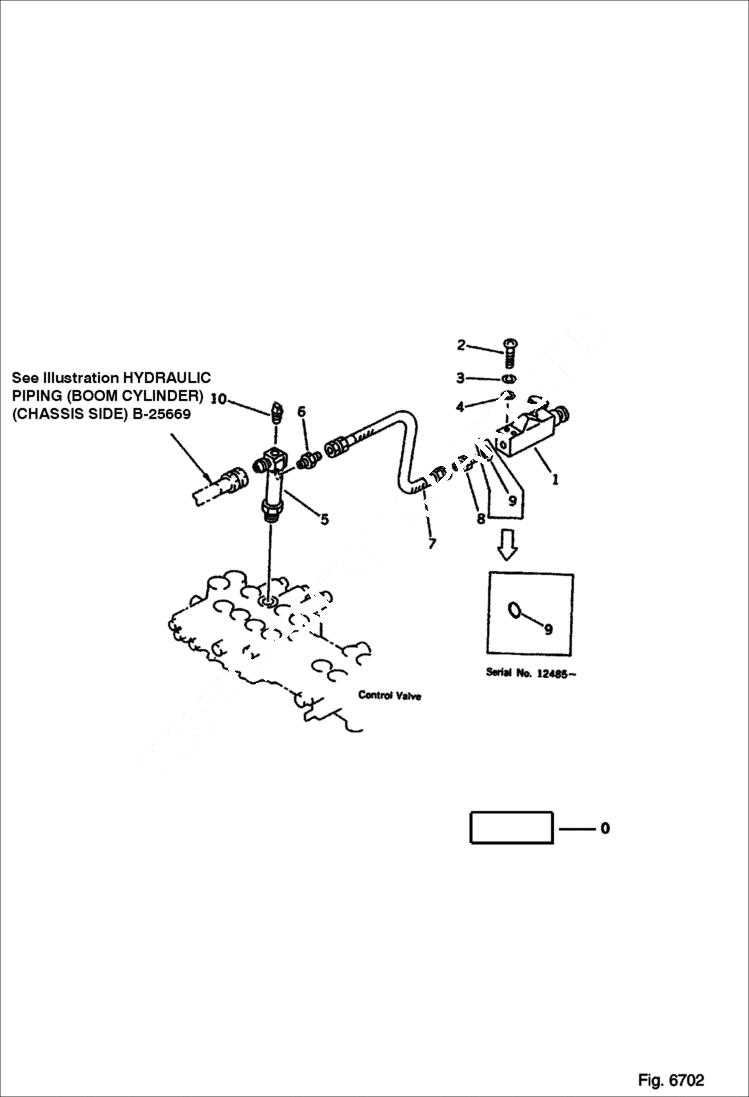

Запчасти Bobcat 100 HYDRAULIC PIPING (MOMENT LIMIT SYSTEM) (WITHOUT CAB) WORK EQUIPMENT CONTROL SYSTEM

0

HYDRAULIC SWITCH GROUP (for moment limit system) - Was 20T-06-X2400

0

PIPING GROUP (for moment limit system) - Was 20T-06-X2500

1

SWITCH pressure - Komatsu S/N 12485 & Abv. - Was 20S-60-31310

1

6638805

SWITCH pressure - Komatsu S/N 10001-12484

2

6637036

SCREW

3

6637126

WASHER

4

6637144

WASHER

5

ELBOW Was 20T-62-64110

6

6639217

NIPPLE

7

6637897

HOSE

8

NIPPLE Komatsu S/N 12485 & Abv. - Was 20S-62-31170

8

6638814

NIPPLE Komatsu S/N 10001-12484

9

6642084

O-RING KT Komatsu S/N 12485 & Abv.

9

6638815

GASKET Komatsu S/N 10001-12484

10

6637441

PLUG
