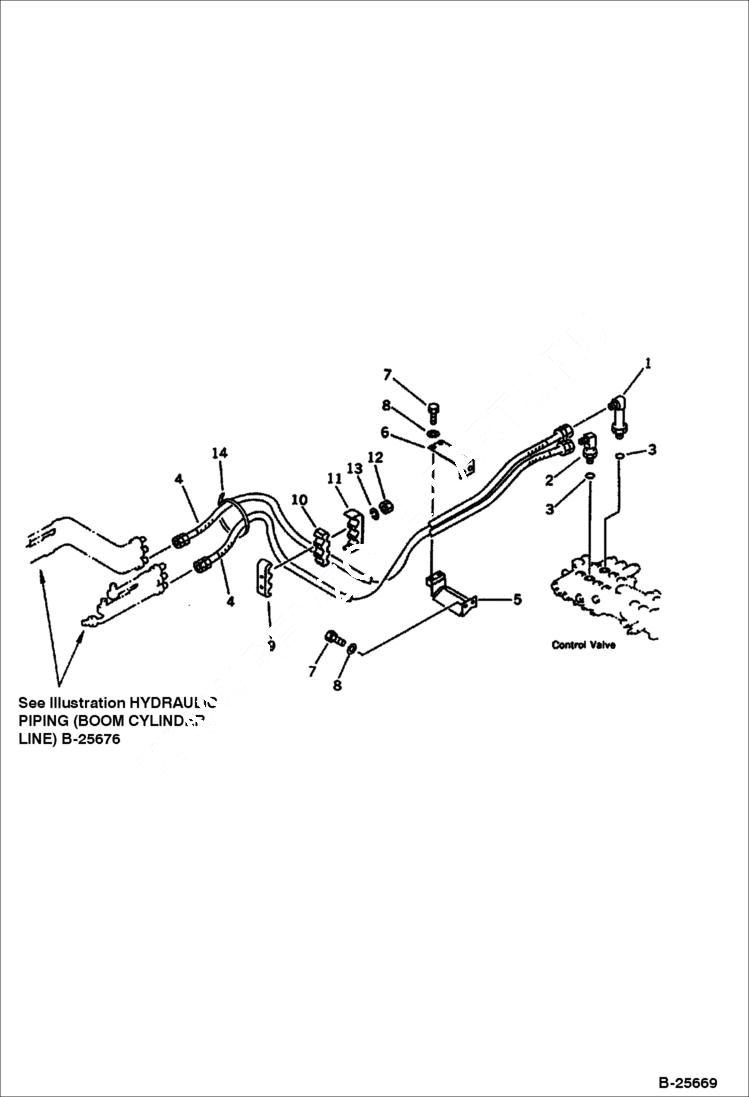

Запчасти Bobcat 100 HYDRAULIC PIPING (BOOM CYLINDER) (CHASSIS SIDE) WORK EQUIPMENT CONTROL SYSTEM

1

6639563

ELBOW

2

6639566

ELBOW

3

6637415

O-RING

4

HOSE Komatsu S/N 12485 & Abv. - Was 20S-62-33450

4

6649915

HOSE Komatsu S/N 10001-12484

5

BRACKET Was 20T-62-61761

6

BRACKET Was 20T-62-61771

7

6636958

BOLT

8

6637156

WASHER

9

RUBBER Komatsu S/N 12485 & Abv. - Was 20S-62-33270

9

RUBBER Komatsu S/N 10001-12484 - Was 20S-62-33230

10

RUBBER Komatsu S/N 12485 & Abv. - Was 20S-62-33280

10

RUBBER Komatsu S/N 10001-12484 - Was 20S-62-33240

11

CLAMP Komatsu S/N 12485 & Abv. - Was 20S-62-33290

11

CLAMP Komatsu S/N 10001-12484 - Was 20S-62-33260

12

NUT Was 01580-10806

13

6637134

WASHER

14

6642944

BAND
