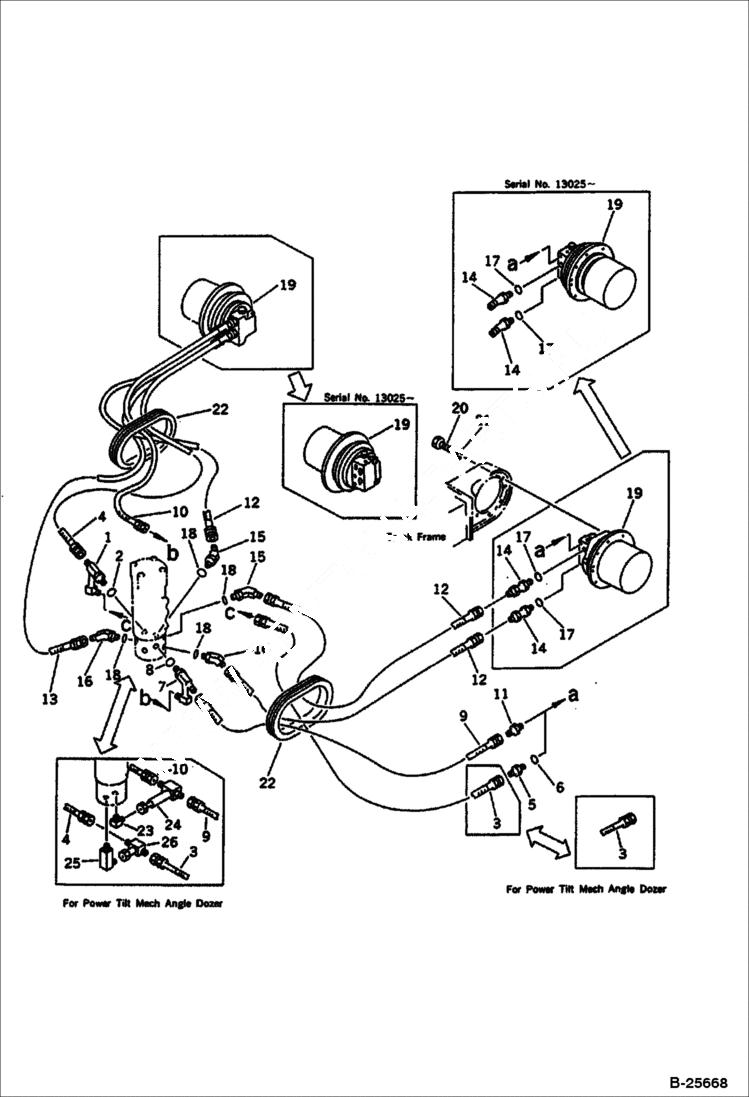

Запчасти Bobcat 100 HYDRAULIC PIPING (SWIVEL JOINT TO/FROM TRAVEL MOTOR) WORK EQUIPMENT CONTROL SYSTEM

1

6665418

TEE

2

6637415

O-RING

3

6649912

HOSE

3

6649914

HOSE (for power tilt mech angle) - Komatsu S/N 13025 & Abv.

4

6649914

HOSE

5

UNION Was 07230-10210

6

6637414

O-RING

7

6665419

TEE

8

6637415

O-RING

9

HOSE Was 07102-20310

10

6649913

HOSE

10

HOSE (for power tilt mech angle) - Komatsu S/N 13025 & Abv. - Was 07102-20310

11

6637888

NIPPLE

12

HOSE Komatsu S/N 12485 & Abv. - Was 20S-62-32250

12

HOSE Komatsu S/N 10001-12484 - Was 20S-62-32130

13

HOSE Komatsu S/N 12485 & Abv. - Was 20S-62-32260

13

HOSE Komatsu S/N 10001-12484 - Was 20S-62-32140

14

ELBOW Komatsu S/N 11501 & Abv. - Was 20S-62-32180

14

6658643

NIPPLE Komatsu S/N 10001-11500

15

6665421

ELBOW

16

6665420

ELBOW

17

6637417

O-RING

18

6637415

O-RING

19

6658674

TRAVELMTR See Illustration TRAVEL MOTOR (1/3)/ 6433 Komatsu S/N 13025 & Abv.

19

TRAVEL MOTOR ASS'Y See Illustration TRAVEL MOTOR (1/3)/ 6433 Komatsu S/N 11501-13024 - Was 20S-60-33100

19

6650406

TRAVELMTR See Illustration TRAVEL MOTOR (1/3)/ 6433 Komatsu S/N 10001-11500

20

6636980

BOLT

21

6637158

WASHER

22

GROMMET Was 20S-62-32120

23

6639131

ELBOW (for power tilt mech angle) - Komatsu S/N 13025 & Abv.

24

TUBE (for power tilt mech angle) - Komatsu S/N 13025 & Abv. - Was 20D-62-41210

25

6639892

ELBOW (for power tilt mech angle) - Komatsu S/N 13025 & Abv.

26

TUBE (for power tilt mech angle) - Komatsu S/N 13025 & Abv. - Was 20U-910-1970
