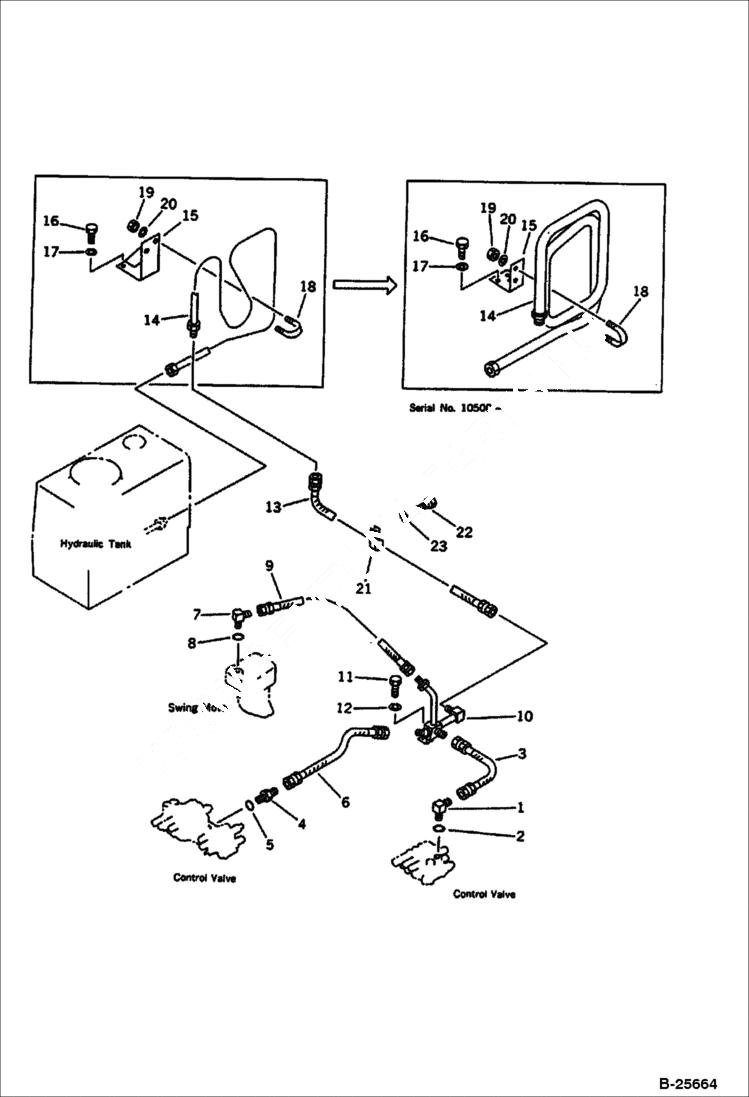

Запчасти Bobcat 100 HYDRAULIC PIPING (RETURN) WORK EQUIPMENT CONTROL SYSTEM

1

6639895

ELBOW

2

6637410

O-RING

3

HOSE Was 07102-20504

4

UNION Was 20S-62-31340

5

6637410

O-RING

6

HOSE Was 07102-20604

7

6639087

ELBOW

8

6637410

O-RING

9

HOSE Was 07102-20504

10

TUBE Komatsu S/N 12485 & Abv. - Was 20S-62-31350

10

TUBE Komatsu S/N 10001-12484 - Was 20S-62-31311

11

6636967

BOLT

12

6637135

WASHER

13

HOSE Was 07102-21011

14

TUBE Komatsu S/N 10500 & Abv. - Was 20S-62-31322

14

TUBE (20S-62-31322, 20S-62-31332) - Komatsu S/N 10001-10499 - Was 20S-62-31321

15

BRACKET Komatsu S/N 10500 & Abv. - Was 20S-62-31332

15

BRACKET Komatsu S/N 10001-10499 - Was 20S-62-31331

16

6636967

BOLT

17

6637157

WASHER

18

6637639

CLIP

19

6637122

NUT

20

6637157

WASHER

21

6639903

CLIP

22

6636966

BOLT

23

6637135

WASHER
