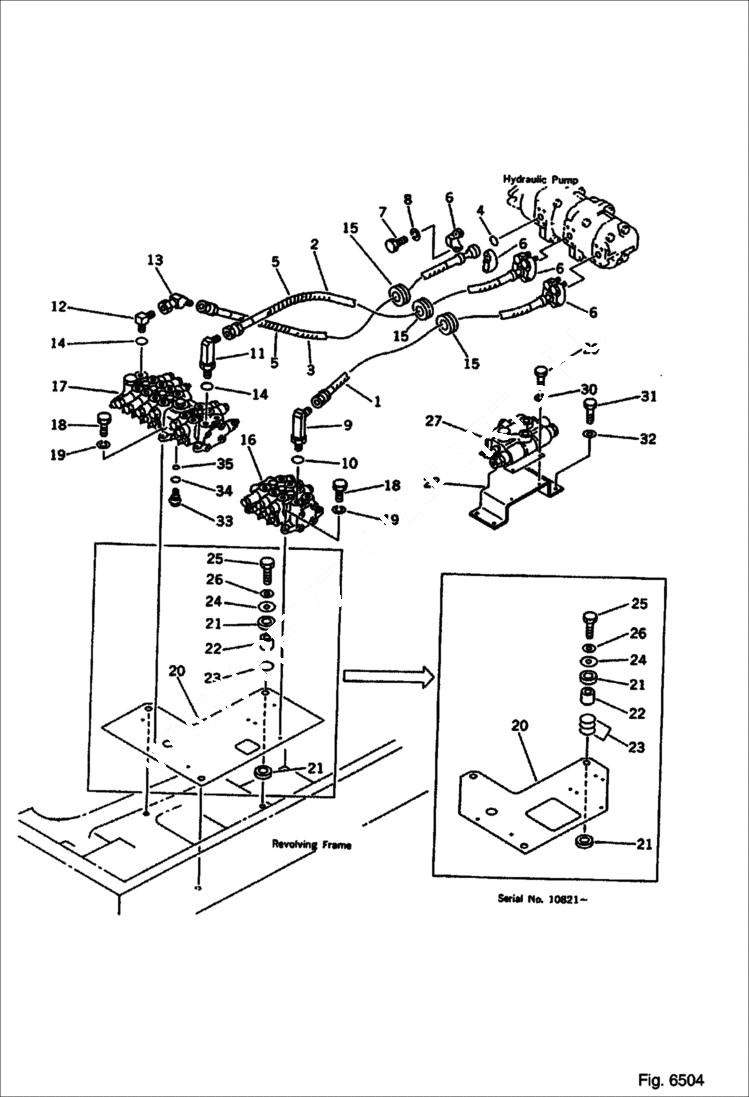

Запчасти Bobcat 100 HYDRAULIC PIPING (PUMP TO VALVE) (FOR BREAKER) WORK EQUIPMENT CONTROL SYSTEM

1

HOSE Komatsu S/N 12485 & Abv. - Was 20S-62-31260

1

6654095

HOSE Komatsu S/N 10001-12484

2

6654094

HOSE Komatsu S/N 12485 & Abv.

2

HOSE Komatsu S/N 10001-12484 - Was 20S-62-31220

3

6654093

HOSE Komatsu S/N 12485 & Abv.

3

HOSE Komatsu S/N 10001-12484 - Was 20S-62-31210

4

6637374

O-RING

5

6639218

COVER

6

6664321

FLANGE

7

6636960

BOLT

8

6637134

WASHER

9

6638588

ELBOW

10

6637417

O-RING

11

6638587

ELBOW

12

6637588

ELBOW

13

6639557

TUBE

14

6637417

O-RING

15

6637703

GROMMET

16

6653214

VALVE ASY See Illustration 3-SPOOL CONTROL VALVE/ B25655

16

VALVE ASS'Y See Illustration 3-SPOOL CONTROL VALVE/ B25655 Komatsu S/N 10501-12575 - Was 709-33-11502

16

VALVE ASS'Y See Illustration 3-SPOOL CONTROL VALVE/ B25655 Komatsu S/N 10065-10500 - Was 709-33-11501

16

VALVE ASS'Y See Illustration 3-SPOOL CONTROL VALVE/ B25655 Komatsu S/N 10001-10064 - Was 709-33-11500

17

VALVE ASS'Y See Illustration 6-SPOOL CONTROL VALVE (1/3)/ B25652 Was 709-36-12203

17

VALVE ASS'Y See Illustration 6-SPOOL CONTROL VALVE (1/3)/ B25652 Komatsu S/N 11655-12575 - Was 709-36-12202

17

6649219

VALVE ASY See Illustration 6-SPOOL CONTROL VALVE (1/3)/ B25652 Komatsu S/N 10065-11654

17

VALVE ASS'Y See Illustration 6-SPOOL CONTROL VALVE (1/3)/ B25652 Komatsu S/N 10001-10064 - Was 709-36-12200

18

6636959

BOLT

19

6637134

WASHER

20

BRACKET Komatsu S/N 10821 & Abv - Was 20S-60-31211

21

BRACKET (20S-60-31211, 203-62-58360 (6) 6637354 (9)) - Komatsu S/N 10001-10820 - Was 20S-60-31210

21

CUSHION Komatsu S/N 10821 & Abv - Was 203-62-58360

21

CUSHION NLA - Komatsu S/N 10001-10820 - Was 6639226 - A

22

6639817

SHIM

23

6637354

O-RING Komatsu S/N 10821 & Abv

23

6637354

O-RING Komatsu S/N 10001-10820

24

6639907

SHIELD

25

6636984

BOLT

26

6637158

WASHER

27

VALVE ASS'Y (for breaker) - Was 709-21-11200

28

BRACKET Was 20S-970-3410

29

6636958

BOLT

30

6637134

WASHER

31

6636966

BOLT

32

6637157

WASHER

33

6640586

PLUG

34

6637411

O-RING

35

6640243

O-RING
