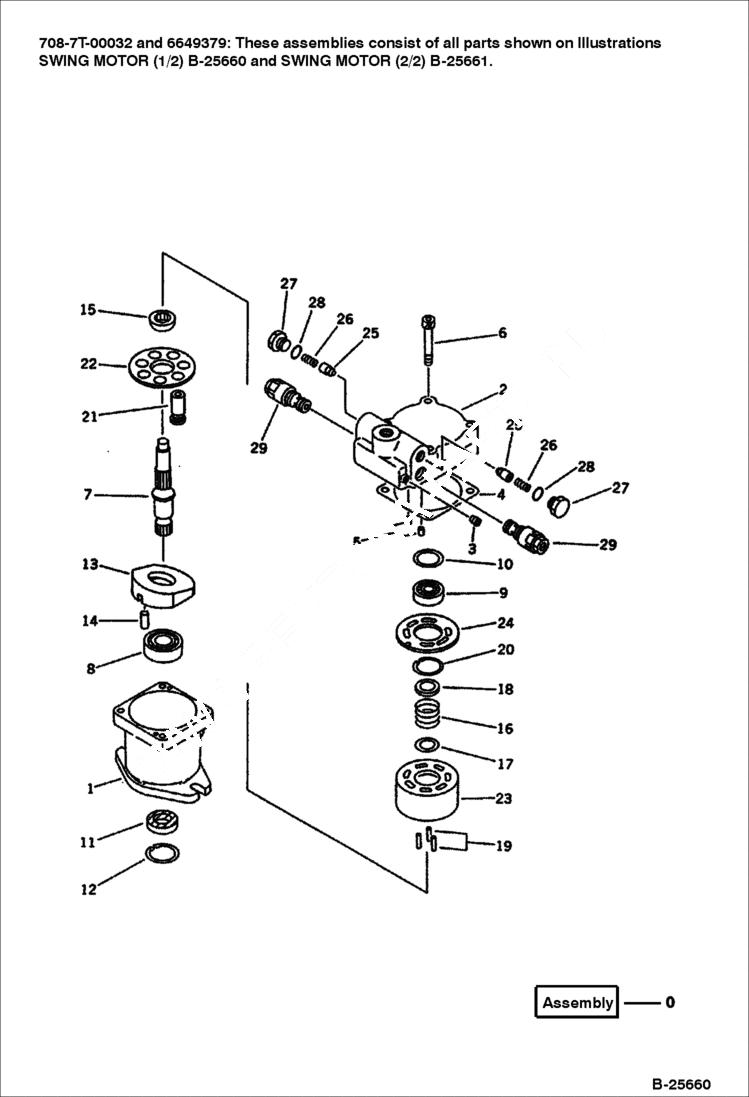

Запчасти Bobcat 100 SWING MOTOR (1/2) WORK EQUIPMENT CONTROL SYSTEM

0

MOTOR ASS'Y Komatsu S/N 11655 & Abv. - Was 708-7T-00032

0

6649379

SWING ASY Komatsu S/N 10001-11654

1

CASE Was 708-7T-11111

2

CAP, END Komatsu S/N 11655 & Abv. - Was 708-7T-11511

2

CAP, END (708-7T-11511, 07043-70108) - Komatsu S/N 10001-11654 - Was 708-7T-11510

3

6637452

PLUG Komatsu S/N 11655 & Abv.

4

GASKET Was 708-7T-11120

5

PIN Was 720-68-19610

6

BOLT Was 708-1D-19120

7

SHAFT Was 708-7T-12120

8

BEARING Was 708-1T-12140

9

BEARING Was 708-1T-12150

10

SPACER KIT Was 708-7T-05010

11

SEAL, OIL Was 708-7B-12210

12

RING Was 04065-04818

13

PLATE, SWASH Was 708-7T-13410

14

6637176

PIN, DOWEL

15

GUIDE, RETAINER Was 708-7T-13510

16

SPRING Was 708-7T-13521

17

WASHER Was 708-7T-13530

18

SPACER Was 708-7T-13550

19

PIN Was 708-7T-13540

20

RING, SNAP Was 04065-03815

21

PISTON SUB ASSY Was 708-7T-13351

22

RETAINER, SHOE Komatsu S/N 11655 & Abv. - Was 708-7T-13342

22

RETAINER, SHOE Komatsu S/N 10001-11654 - Was 708-7T-13341

23

BLOCK, CYLINDER Was 708-7T-13120

24

PLATE, VALVE Komatsu S/N 11655 & Abv. - Was 708-7T-13231

24

PLATE, VALVE Komatsu S/N 10001-11654 - Was 708-7T-13230

25

VALVE Was 708-7T-16110

26

SPRING Was 708-7T-16120

27

6637436

PLUG

28

6637415

O-RING

29

RELIEF VALVE ASS'Y Was 708-7T-02051
